CCV & Canister Inspection 1

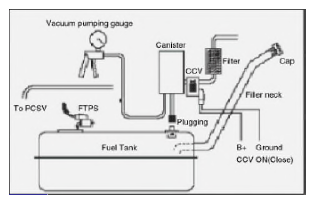

  1. Disconnect the CCV from the CCV and the canister line.
  2. Clamp the nipple from which the CCV is removed with a suitable stopper.

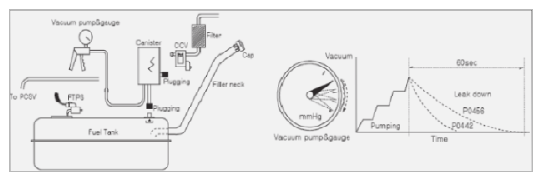

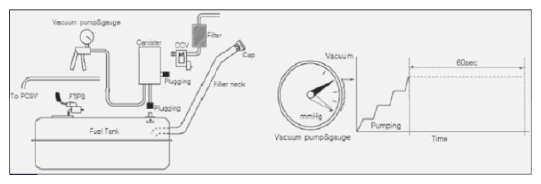

  3. Check the vacuum leakage of the canister line by operating the vacuum pump.
    G15725809Courtesy of KIA MOTORS AMERICA, INC.
    G15725810Courtesy of KIA MOTORS AMERICA, INC.
    G15725811Courtesy of KIA MOTORS AMERICA, INC.

    Good

    • If the gauge's instructions are maintained for more than 1 minute, turn on CCV several times and repeat the test 3 to 4 times. If the gauge's instructions remain unchanged for more than one minute, perform go to "COMPONENT INSPECTION " procedure.

    No Good

    • Carefully re-do this troubleshooting guide steps.
    • Repair as necessary and Go to "VERIFICATION OF REPAIR " procedure.
