Component Inspection
| Inspection Condition | (+) Probe | (-) Probe | Reference | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|

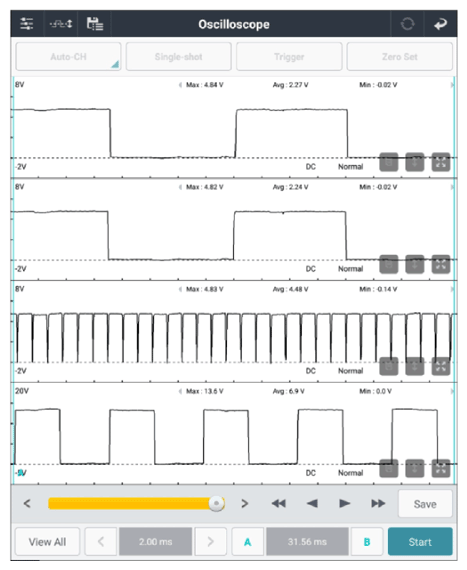

CMPS - In (Bank2) connector | 2 (signal) | CMPS - Ex (Bank2) connector | 1 (signal) | Fig.1 |
| CKPS connector | 1 (signal) | OCV - In (Bank2) connector | 1 (control) | ||
Good
- Go to "VERIFICATION OF REPAIR " procedure.
No Good
- Carefully re-do this troubleshooting guide steps.
- If no problems were found with the circuits or connectors, replace the CMPS and Go to "VERIFICATION OF REPAIR " procedure.
