Circuit Inspection

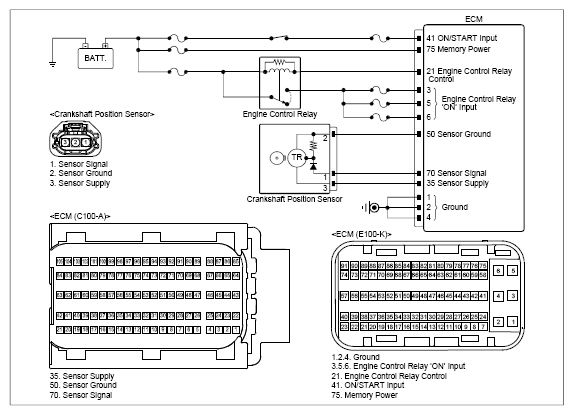

G15725657

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Disconnect the electrical connector(s) from the concerned component. Ignition "ON".	CKPS connector	1 (signal)	Chassis ground	-	Approx. 4.8V
	CKPS connector	2 (ground)	Chassis ground	-	0V
	CKPS connector	3 (power)	Chassis ground	-	Approx. 5V
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component.	CKPS connector	1 (signal)	Chassis ground	-	∞ (infinity)Ω
	CKPS connector	3 (power)	Chassis ground	-	∞ (infinity)Ω

Good

Go to "COMPONENT INSPECTION " procedure.

No Good

Repair or replace as necessary and then, Go to "VERIFICATION OF REPAIR " procedure.
