Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 5
G15725577Courtesy of KIA MOTORS AMERICA, INC.

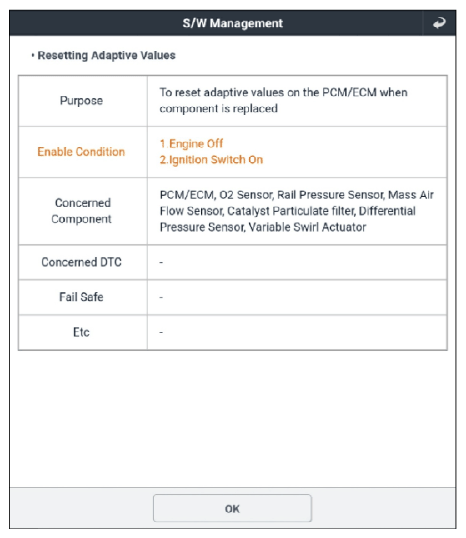

G15725578Courtesy of KIA MOTORS AMERICA, INC.

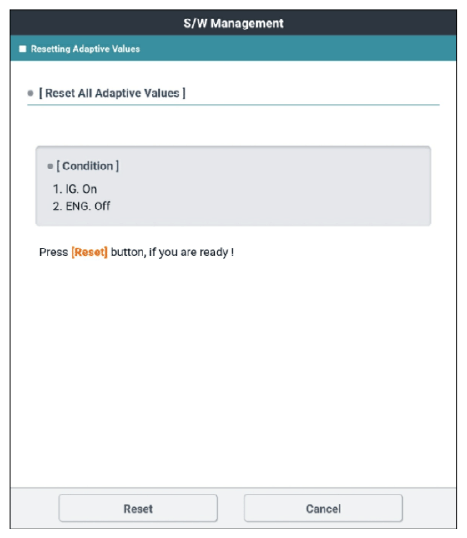

G15725579Courtesy of KIA MOTORS AMERICA, INC.
G15725580Courtesy of KIA MOTORS AMERICA, INC.
G15725581Courtesy of KIA MOTORS AMERICA, INC.
