Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 5
G15725566Courtesy of KIA MOTORS AMERICA, INC.

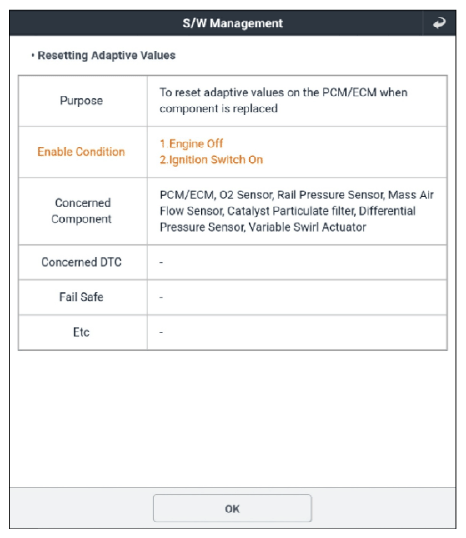

G15725567Courtesy of KIA MOTORS AMERICA, INC.

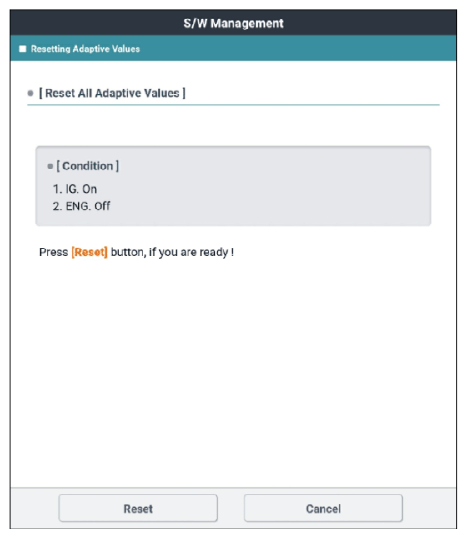

G15725568Courtesy of KIA MOTORS AMERICA, INC.
G15725569Courtesy of KIA MOTORS AMERICA, INC.
G15725570Courtesy of KIA MOTORS AMERICA, INC.
