Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.

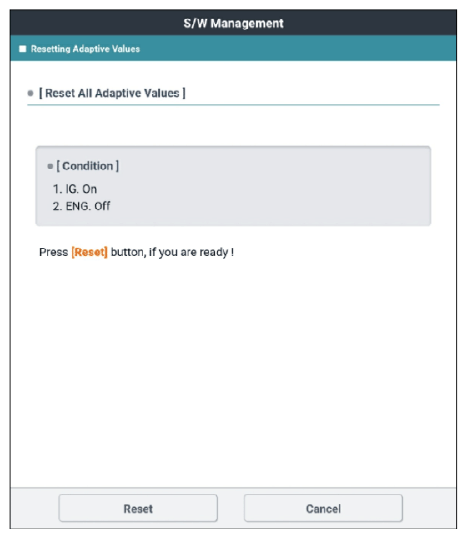

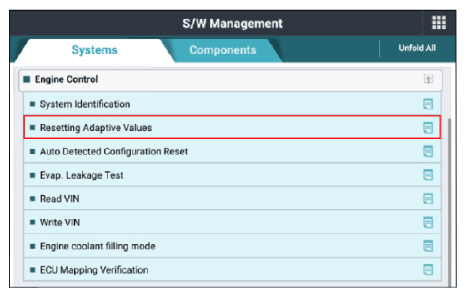

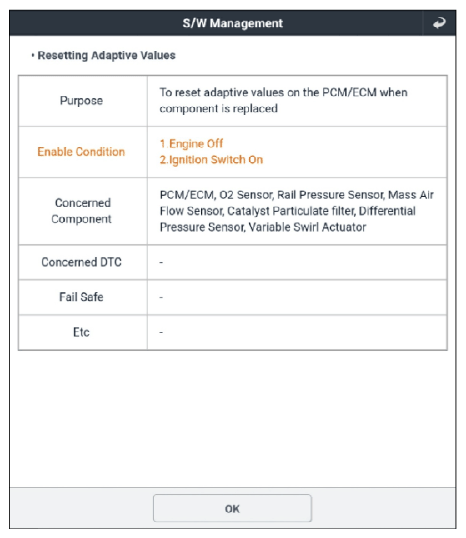

 Fig.1 to 5
G15725522Courtesy of KIA MOTORS AMERICA, INC.
G15725523Courtesy of KIA MOTORS AMERICA, INC.
G15725524Courtesy of KIA MOTORS AMERICA, INC.
G15725525Courtesy of KIA MOTORS AMERICA, INC.
G15725526Courtesy of KIA MOTORS AMERICA, INC.
