Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.

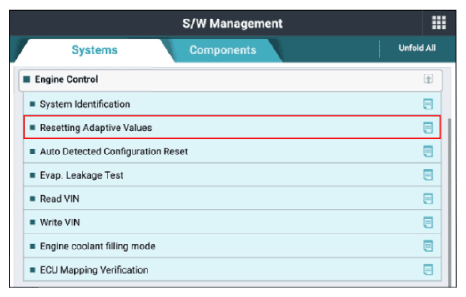

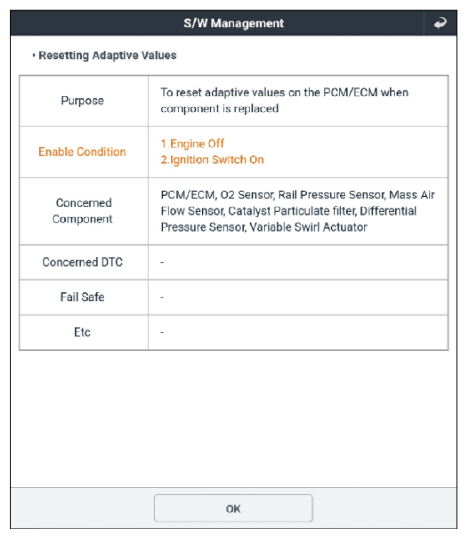

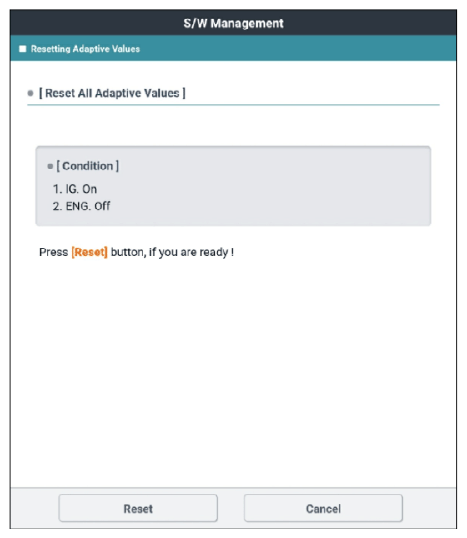

 Fig.1 to 5
G15725376Courtesy of KIA MOTORS AMERICA, INC.
G15725377Courtesy of KIA MOTORS AMERICA, INC.
G15725378Courtesy of KIA MOTORS AMERICA, INC.
G15725379Courtesy of KIA MOTORS AMERICA, INC.
G15725380Courtesy of KIA MOTORS AMERICA, INC.
