Circuit Inspection

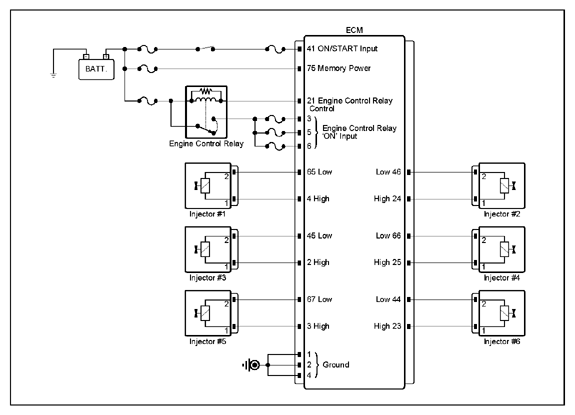

G15725248

Courtesy of KIA MOTORS AMERICA, INC.

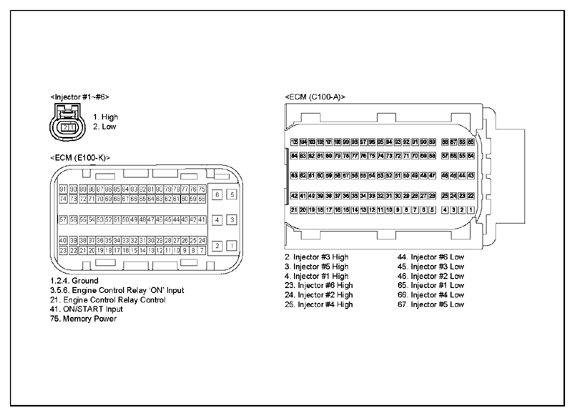

G15725249

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Disconnect the electrical connector(s) from the concerned component and ECM. Ignition "ON".	Injector #1 connector	1 (high)	Chassis ground	-	Approx. 0V
	Injector #1 connector	2 (low)	Chassis ground	-	Approx. 0V
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component and ECM.	Injector #1 connector	1 (high)	Chassis ground	-	∞ (infinity)Ω
	Injector #1 connector	2 (low)	Chassis ground	-	∞ (infinity)Ω
	Injector #1 connector	1 (high)	Injector #1 connector	2 (low)	∞ (infinity)Ω

Good

Go to "COMPONENT INSPECTION " procedure.

No Good

Repair or replace as necessary and then, Go to "VERIFICATION OF REPAIR " procedure.
