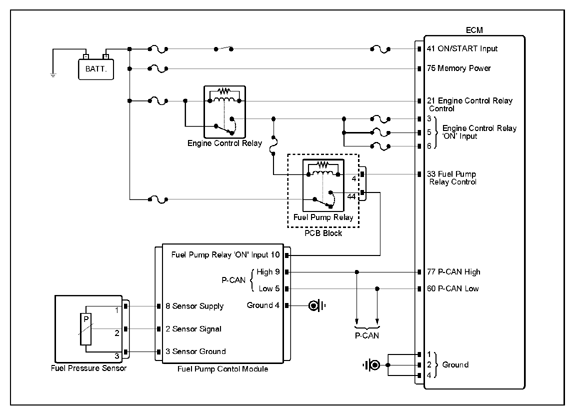

Circuit Inspection

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification

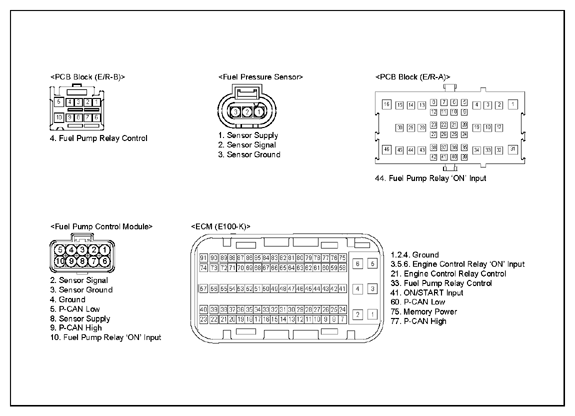

Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component.	PCB block connector	4 (relay control)	ECM connector	33 (relay control)	Approx. below 1Ω
	PCB block connector	44 (relay ON power)	FPCM connector	10 (relay ON power)	Approx. below 1Ω
Disconnect the electrical connector(s) from the concerned component. Ignition "ON".	FPCM connector	10 (relay ON power)	Chassis ground	-	B+

Good

No Good

Repair or replace as necessary and then, Go to "VERIFICATION OF REPAIR " procedure.
