Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 5

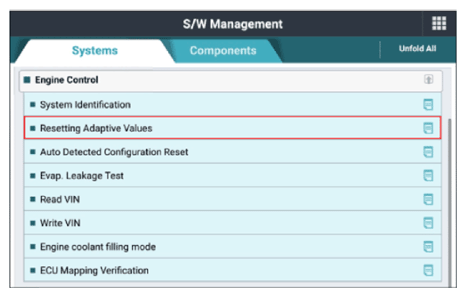

G15725157Courtesy of KIA MOTORS AMERICA, INC.

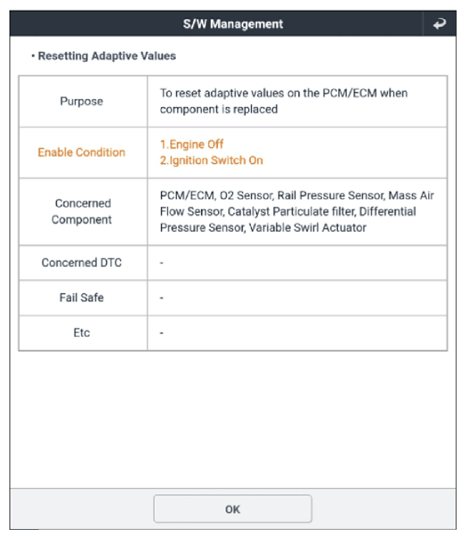

G15725158Courtesy of KIA MOTORS AMERICA, INC.

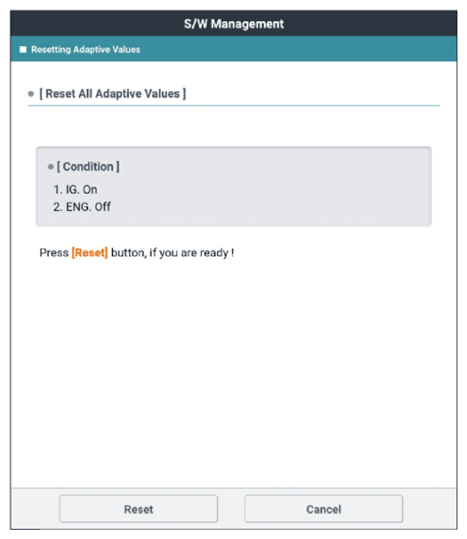

G15725159Courtesy of KIA MOTORS AMERICA, INC.

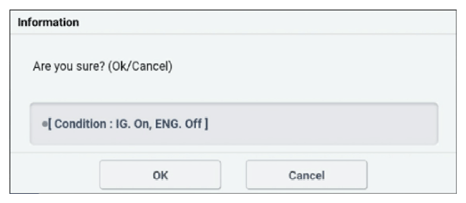

G15725160Courtesy of KIA MOTORS AMERICA, INC.
G15725161Courtesy of KIA MOTORS AMERICA, INC.
