Injector Inspection
| Inspection Condition | (+) Probe | (-) Probe | Reference | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|

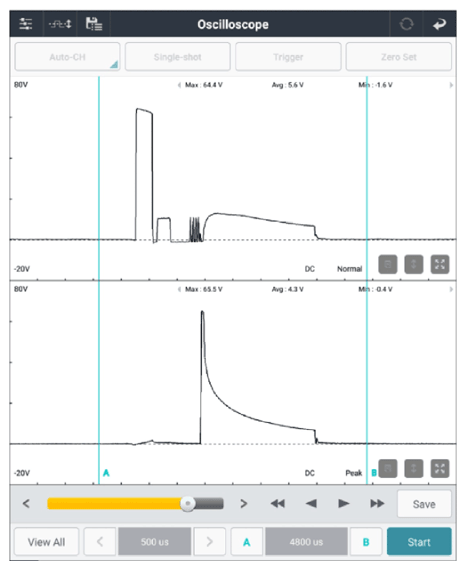

Injector #2 connector | 1 (high) | Injector #2 connector | 2 (low) | Fig.1 |
| Injector #4 connector | 1 (high) | Injector #4 connector | 2 (low) | ||
| Injector #6 connector | 1 (high) | Injector #6 connector | 2 (low) | ||
Good
- Go to "VERIFICATION OF REPAIR " procedure.
No Good
- Carefully re-do this troubleshooting guide steps.
- If no problems were found with the circuits or connectors, replace the injector and Go to "VERIFICATION OF REPAIR " procedure.
