Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 5
G15722426Courtesy of KIA MOTORS AMERICA, INC.

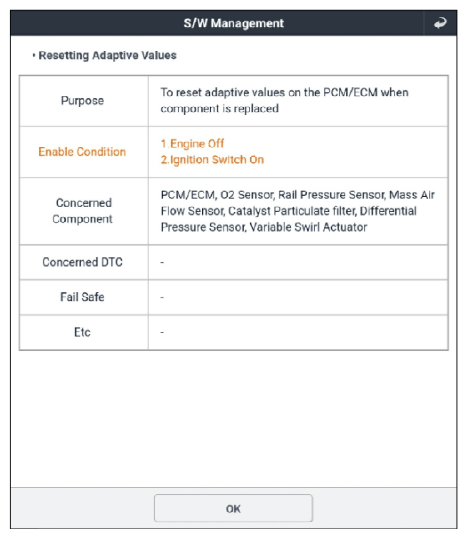

G15722427Courtesy of KIA MOTORS AMERICA, INC.

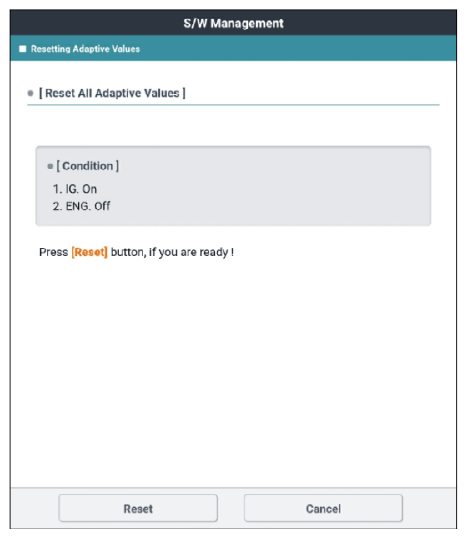

G15722428Courtesy of KIA MOTORS AMERICA, INC.
G15722429Courtesy of KIA MOTORS AMERICA, INC.
G15722430Courtesy of KIA MOTORS AMERICA, INC.
