Circuit Inspection

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification

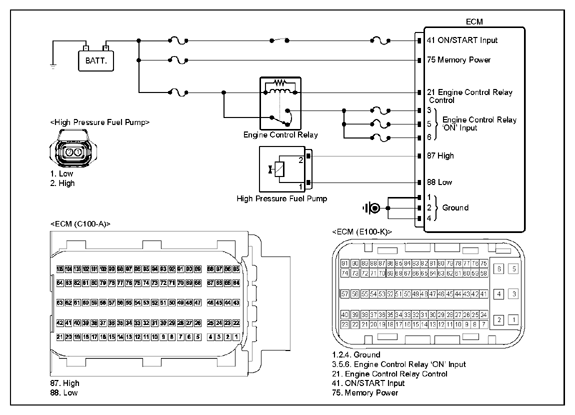

Ignition "OFF". Disconnect the electrical connector(s) from the concerned component. Ignition "ON".	High pressure fuel pump connector	2 (high)	Chassis ground	-	Approx. 4.35V
	High pressure fuel pump connector	1 (low)	Chassis ground	-	Approx. 0.64V

Good

No Good

Repair or replace as necessary and then, Go to "VERIFICATION OF REPAIR " procedure.
