Circuit Inspection

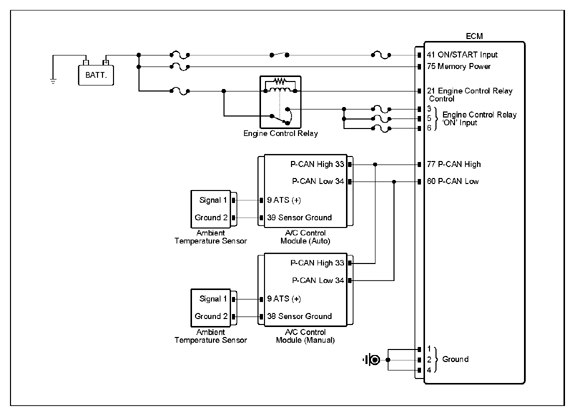

G15722240

Courtesy of KIA MOTORS AMERICA, INC.

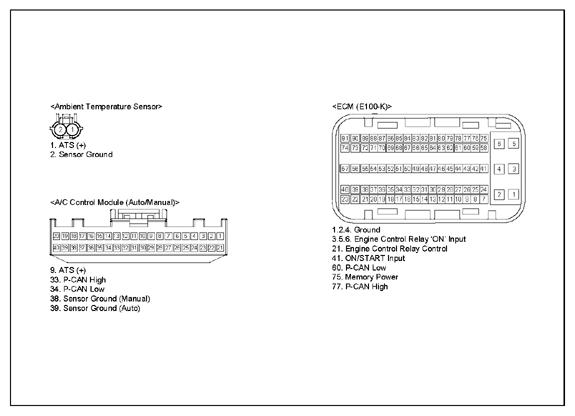

G15722241

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component.	ATS connector	1 (signal)	Chassis ground	-	∞ (infinity)Ω
	ATS connector	1 (signal)	A/C control module connector	9 (signal)	Approx. below 1Ω
	ATS connector	2 (ground)	A/C control module connector (auto)	39 (ground)	Approx. below 1Ω
	ATS connector	2 (ground)	A/C control module connector (manual)	38 (ground)	Approx. below 1Ω

Good

Go to "Next" procedure.

No Good

Repair or replace as necessary and then, Go to "VERIFICATION OF REPAIR " procedure.
