Circuit Inspection

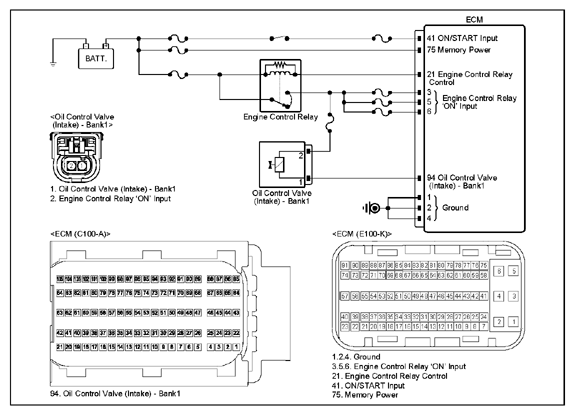

G15722118Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition (+) Probe (-) Probe Specification
Connector Terminal Connector Terminal
  1. Ignition "OFF".
  2. Disconnect the electrical connector(s) from the concerned component and ECM.
 OCV - In (Bank1) connector 1 (control) Chassis ground - ∞ (infinity)Ω
OCV - In (Bank1) connector 1 (control) ECM connector 94 (control) Approx. below 1Ω
  1. Disconnect the electrical connector(s) from the concerned component.
  2. Ignition "ON".
 OCV - In (Bank1) connector 2 (power) Chassis ground - B+
OCV - In (Bank1) connector 1 (control) Chassis ground - Approx. 2.5V
  1. Engine "ON".

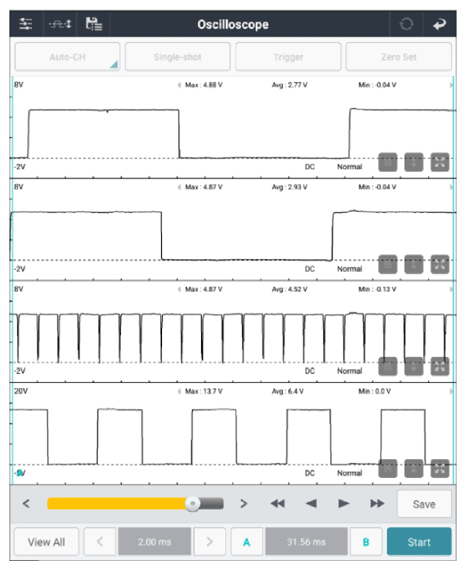

 CMPS - In (Bank1) connector 2 (signal) CMPS - Ex (Bank1) connector 2 (signal) Fig.1
CKPS connector 2 (+) OCV - In (Bank1) connector 1 (control)
G15722119Courtesy of KIA MOTORS AMERICA, INC.

Good

No Good
