Removal & Installation: Removal

CAUTION: Since there is a risk of injury due to high pressure fuel leakage, do not perform any work right after the engine is stopped.

NOTE: Cover the connection with a clean cloth since the residual fuel may be released after "Release Residual Pressure in Fuel Line" procedures.

Release the residual pressure in fuel line.
(Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
Disconnect the battery negative (-) terminal.
Remove the high pressure fuel pipe [high pressure fuel pump ↔ delivery pipe].
(Refer to Fuel Delivery System - "FUEL LINE ")

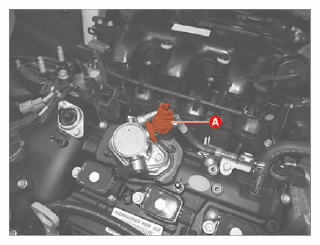

Open the fuel tube clip (A).

Courtesy of KIA MOTORS AMERICA, INC.

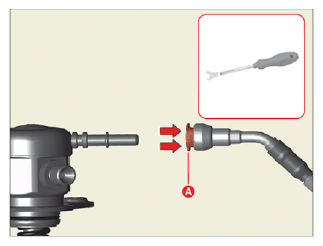

Separate the fuel feed tube (A) from the high pressure fuel pump.

Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- Cover the connection with a clean cloth since the residual fuel may be released after "Release Residual Pressure in Fuel Line" procedures.

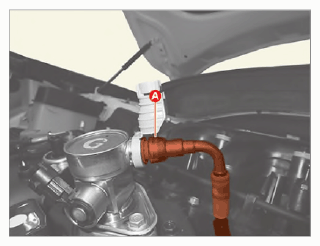

- When separating the fuel supply tube, separate it after pressing the holder (A) firmly by using the clip remover.
Courtesy of KIA MOTORS AMERICA, INC.

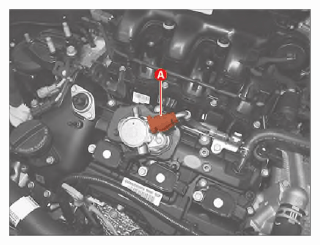

Remove the fuel tube clip (A).

Courtesy of KIA MOTORS AMERICA, INC.

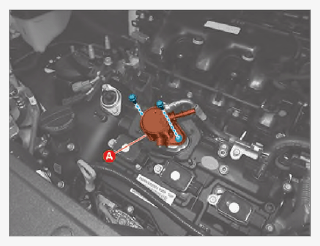

Remove the high pressure fuel pump (A) after removing the bolts.
Tightening torque:

12.7 - 14.7 N.m (1.3 - 1.5 kgf.m, 9.4 - 10.8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Remove the bolts alternately. If (only) one of bolts is completely removed, the housing surface of the cylinder head may be damaged due to the spring tension of the high-pressure fuel pump.

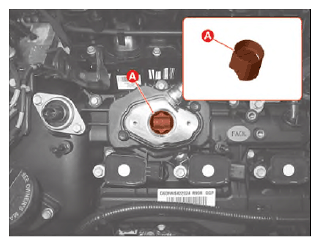

Remove the roller tappet (A).
