Removal & Installation: Installation

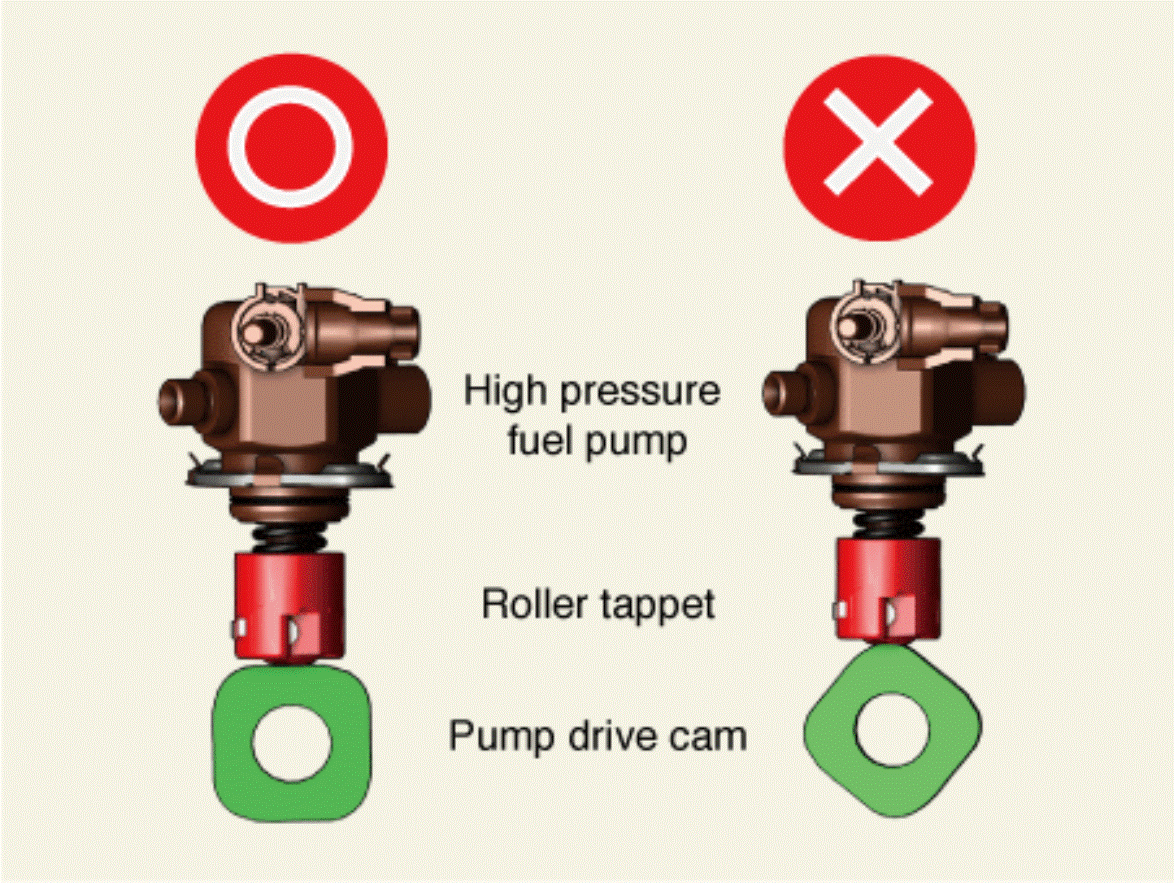

After checking the pump drive cam position, place the cam position to BDC by turning the damper pulley in the direction of clockwise.
NOTE:
If the high pressure fuel pump is installed in a position other than the BDC, the following problems may occur.
- O-rings may be damaged due to incomplete tightening.
- High pressure fuel pump piston tightening bolt thread may be damaged.
Courtesy of KIA MOTORS AMERICA, INC.

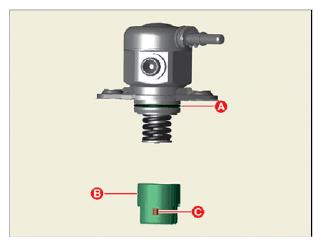

Apply engine oil to the O-ring (A), roller tappet (B), guide pin (C) and mounting groove of the high pressure fuel pump.

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Replace the O-ring and gasket with a new one. (Do not reuse)

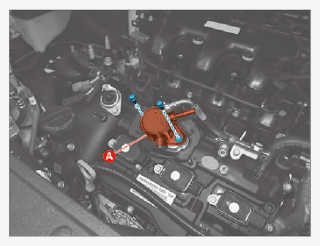

After installing the high pressure fuel pump (A) and the roller tappet, pre-tighten the bolt by hand.

Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- Tighten the bolts by a half turn alternately. If (only) one of the bolts is completely tightened, the housing surface of cylinder head may be damaged due to the spring tension of the high-pressure fuel pump.
- Do not reuse the bolts.
Tighten the high pressure fuel pump bolts to the specified torque.
Tightening torque:

12.7 - 14.7 N.m (1.3 - 1.5 kgf.m, 9.4 - 10.8 lb.ft)
Install the high pressure fuel pipe.
(Refer to Fuel Delivery System - "FUEL LINE ")

NOTE: Replace the high pressure fuel pipe with a new one. (Do not reuse)
Connect the battery negative (-) terminal.
Check for fuel leaks after installation.
