Removal & Installation: Removal

  1. Remove the fuel pump module.

    (Refer to Fuel Delivery System - "FUEL PUMP MODULE ")

  2. Disconnect the fuel sender connector (A).
    G15693505Courtesy of KIA MOTORS AMERICA, INC.

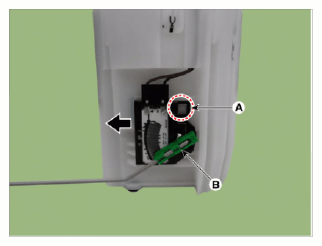

  3. Remove the fuel sender (B) after releasing the fixing hook (A).
G15693506Courtesy of KIA MOTORS AMERICA, INC.
