Removal & Installation: Removal

  1. Remove the fuel pump module.

    (Refer to Fuel Delivery System - "FUEL PUMP MODULE ")

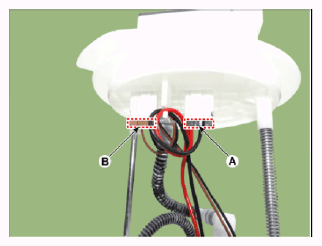

  2. Disconnect the fuel pump motor connector (A) and fuel sender connector (B).
    G15693495Courtesy of KIA MOTORS AMERICA, INC.

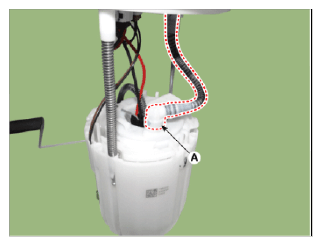

  3. Separate the feed tube (A) after removing the clip.
    G15693496Courtesy of KIA MOTORS AMERICA, INC.

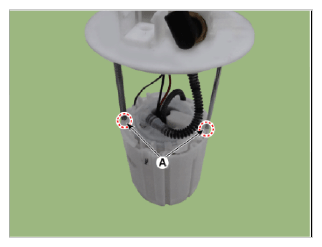

  4. Remove the fuel pump plate assembly after releasing the cushion hook (A).
    G15693497Courtesy of KIA MOTORS AMERICA, INC.

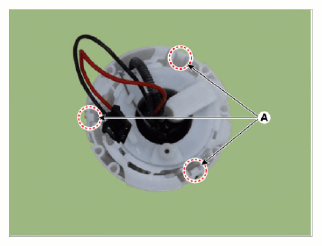

  5. Remove the reservoir-cup after releasing the fixing hook (A).
    G15693498Courtesy of KIA MOTORS AMERICA, INC.

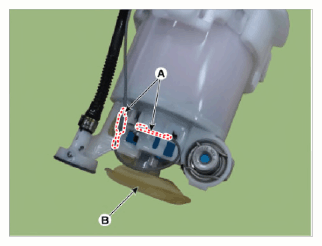

  6. Disconnect the ground terminal (A).
  7. Remove the pre-filter (B).
    G15693499Courtesy of KIA MOTORS AMERICA, INC.

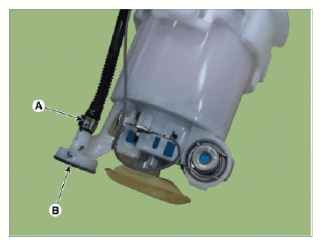

  8. Remove the fixing clip (A) and the assist pump assembly (B).
    G15693500Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:

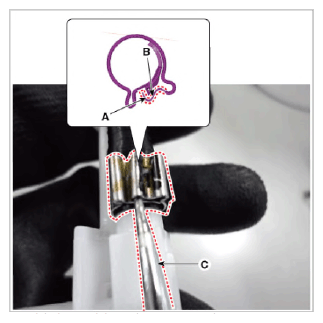

    1. Unhook the clip (A, B) by using an awl (C).
      G15693501Courtesy of KIA MOTORS AMERICA, INC.

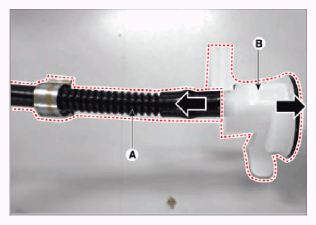

    2. Separate the tube (A) with the assist pump (B) by pulling it
    G15693502Courtesy of KIA MOTORS AMERICA, INC.

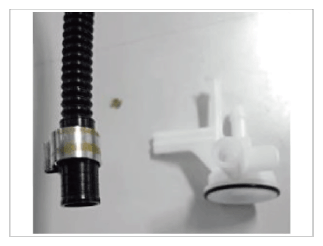

    G15693503Courtesy of KIA MOTORS AMERICA, INC.
  9. Remove the fuel pump motor (A) from the fuel filter (B).
G15693504Courtesy of KIA MOTORS AMERICA, INC.
