Removal & Installation: Removal

  1. Release the residual pressure in fuel line.

    (Refer to Fuel Delivery system - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")

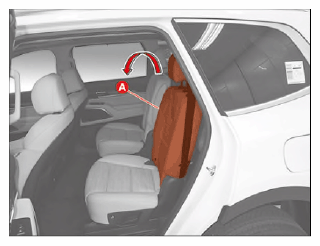

  2. Fold the rear seat back assembly (A) in the direction of the arrow.
    G15693473Courtesy of KIA MOTORS AMERICA, INC.

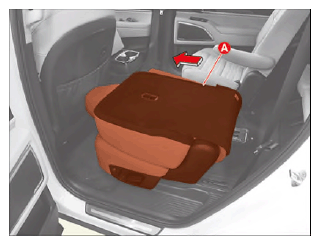

  3. Move the rear seat assembly (A) forward as far as possible in the direction of the arrow.
    G15693474Courtesy of KIA MOTORS AMERICA, INC.

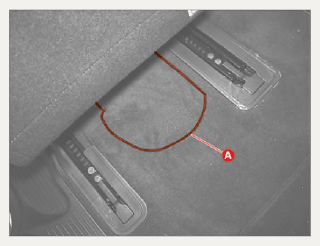

  4. Cut the cover along the line (A).
    G15693475Courtesy of KIA MOTORS AMERICA, INC.

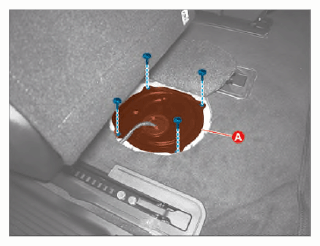

  5. Remove the fuel pump service cover (A) after removing the screws.
    G15693476Courtesy of KIA MOTORS AMERICA, INC.

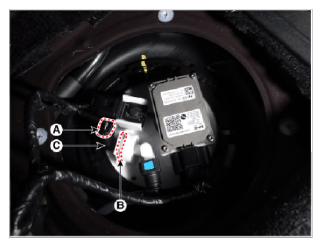

  6. Disconnect the Fuel Pressure Sensor (FPS) connector (A).
  7. Remove the fuel pressure sensor (C) after removing the clip (B).
G15693477Courtesy of KIA MOTORS AMERICA, INC.
