Removal & Installation: Removal

  1. Remove the fuel pump module.

    (Refer to Fuel Delivery System - "FUEL PUMP MODULE ")

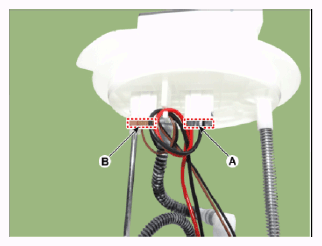

  2. Disconnect the fuel pump motor connector (A) and fuel sender connector (B).
    G15693466Courtesy of KIA MOTORS AMERICA, INC.

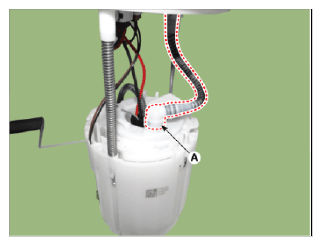

  3. Separate the feed tube (A) after removing the clip.
    G15693467Courtesy of KIA MOTORS AMERICA, INC.

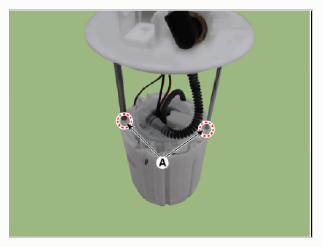

  4. Remove the fuel pump plate assembly after releasing the cushion hook (A).
    G15693468Courtesy of KIA MOTORS AMERICA, INC.

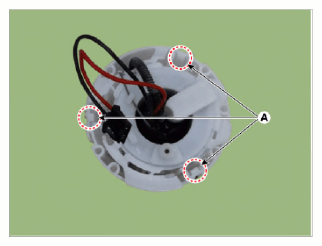

  5. Remove the reservoir-cup after releasing the fixing hook (A).
    G15693469Courtesy of KIA MOTORS AMERICA, INC.

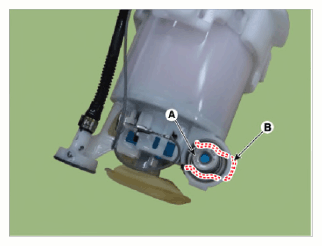

  6. Remove the fuel pressure regulator (A) after removing the fixing pin (B).
G15693470Courtesy of KIA MOTORS AMERICA, INC.
G15693471Courtesy of KIA MOTORS AMERICA, INC.
