Low Pressure Fuel Line [High Pressure Fuel Pump ↔ Extension Fuel Line]

Release the residual pressure in fuel line.
(Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
Disconnect the battery negative (-) terminal.
Remove the engine cover.
(Refer to Engine Mechanical System - "ENGINE COVER ")

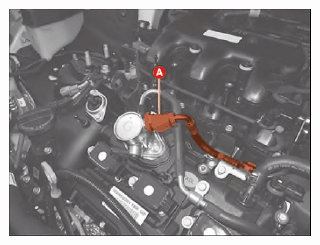

Remove the control wiring harness.

Courtesy of KIA MOTORS AMERICA, INC.

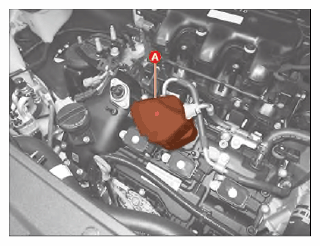

Remove the foams (A).

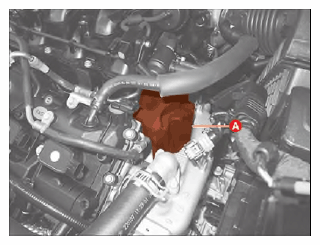

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

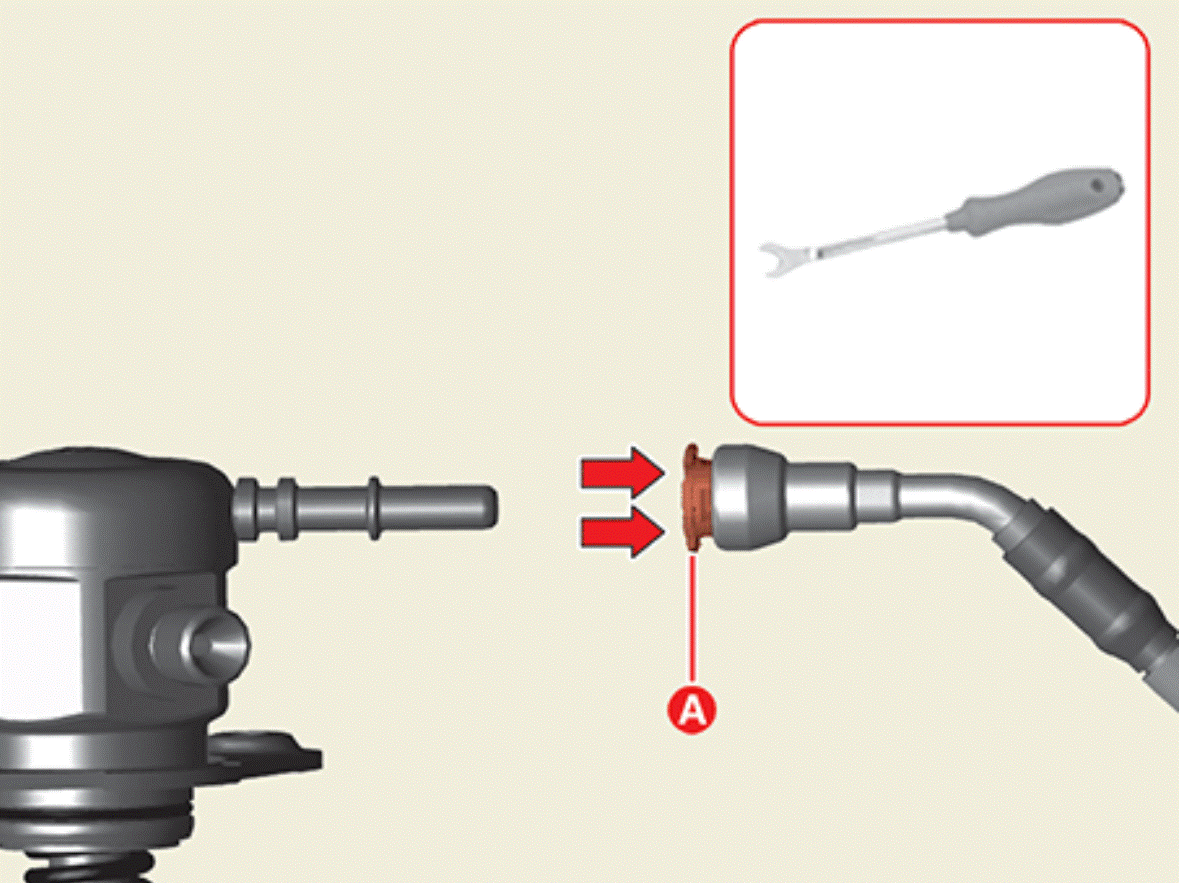

Separate the low pressure fuel line (A) after opening the fuel tube clip.

Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- Cover the connection with a clean cloth since the residual fuel may be released after "Release Residual Pressure in Fuel Line" procedures.
- When separating the fuel supply tube, separate it after pressing the holder (A) firmly by using the clip remover.
Courtesy of KIA MOTORS AMERICA, INC.

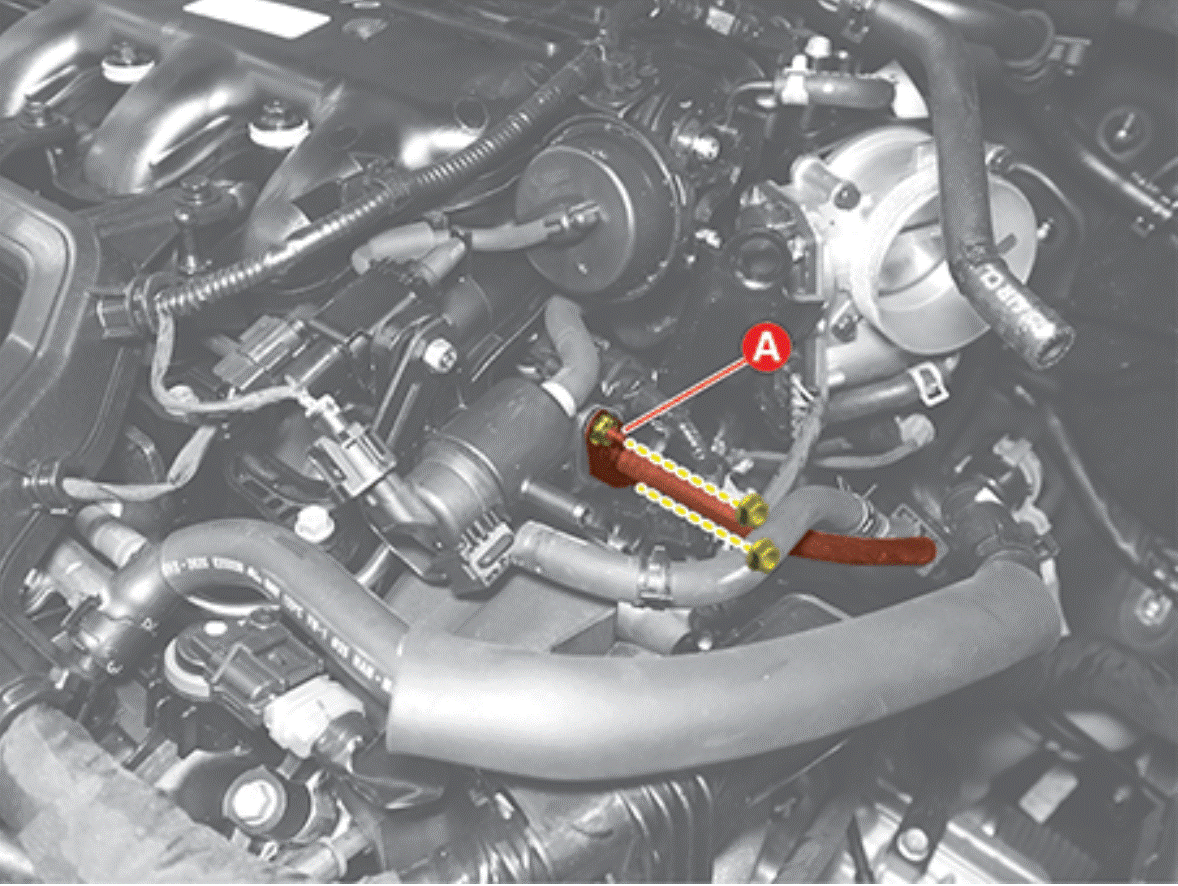

Separate the low pressure fuel line (A) after removing the nuts.
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

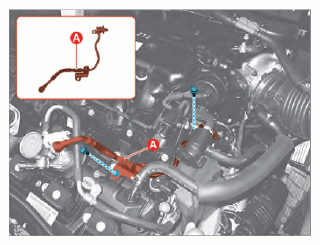

Remove the low pressure fuel line (A) after removing the bolts.
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m 7.2 - 8.7 lb.ft)
