Low Pressure Fuel Line [Extension Fuel Line ↔ Fuel Tank]

Release the residual pressure in fuel line.
(Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
Disconnect the battery negative (-) terminal.
Remove the engine cover.
(Refer to Engine Mechanical System - "ENGINE COVER ")

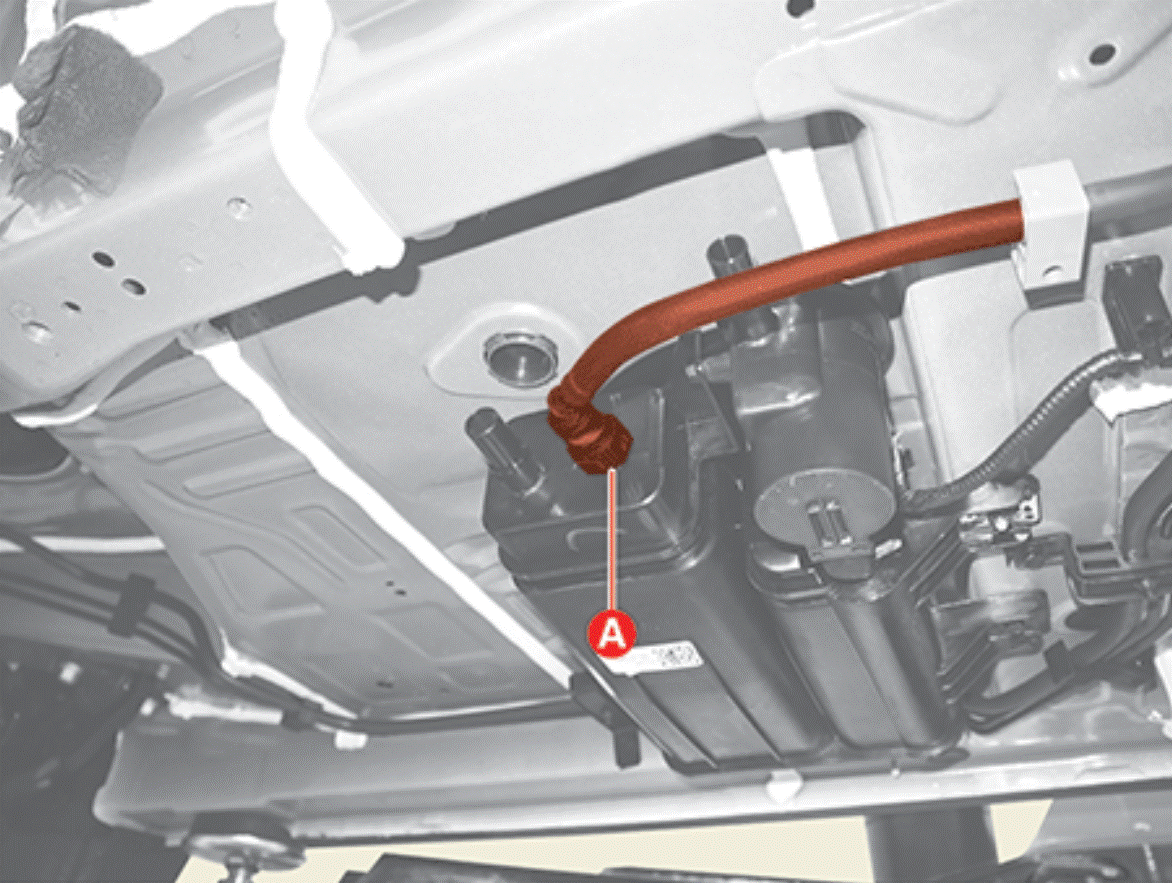

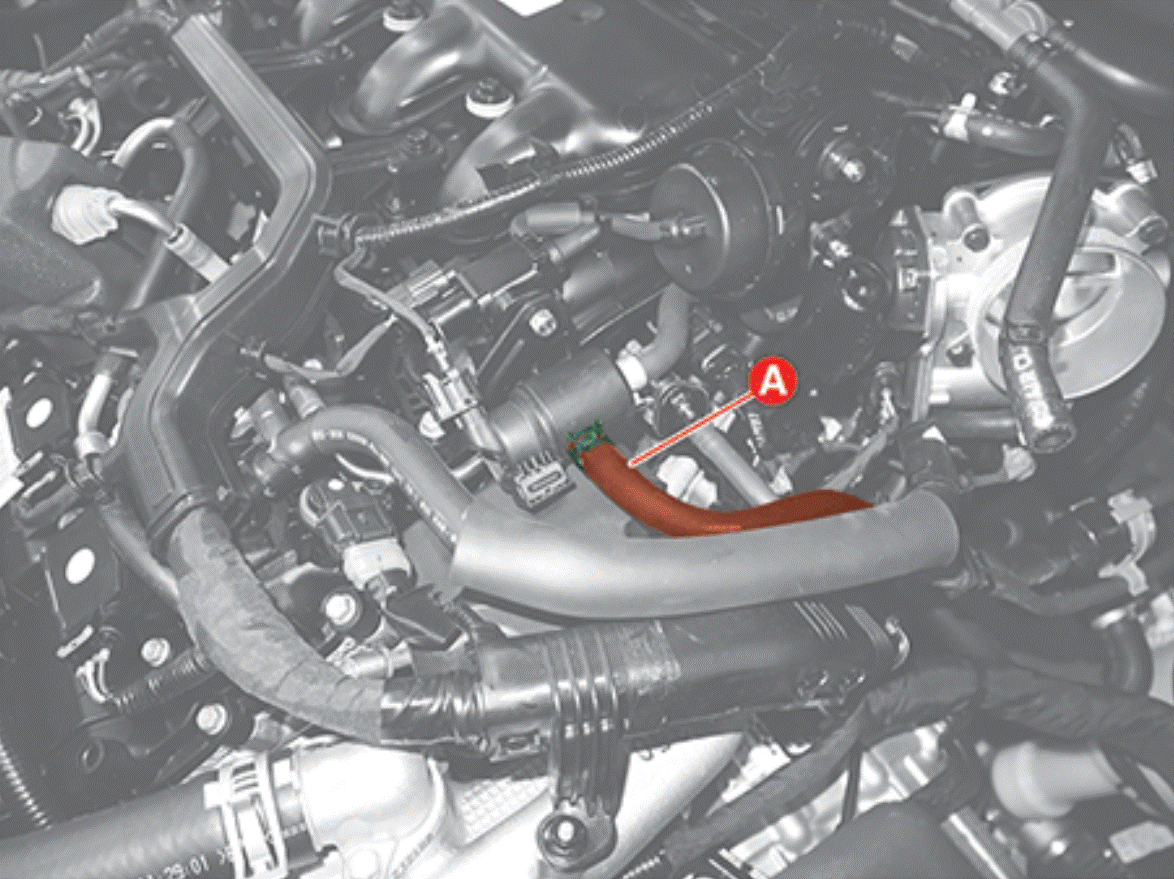

Separate the vapor hose (A).

Courtesy of KIA MOTORS AMERICA, INC.

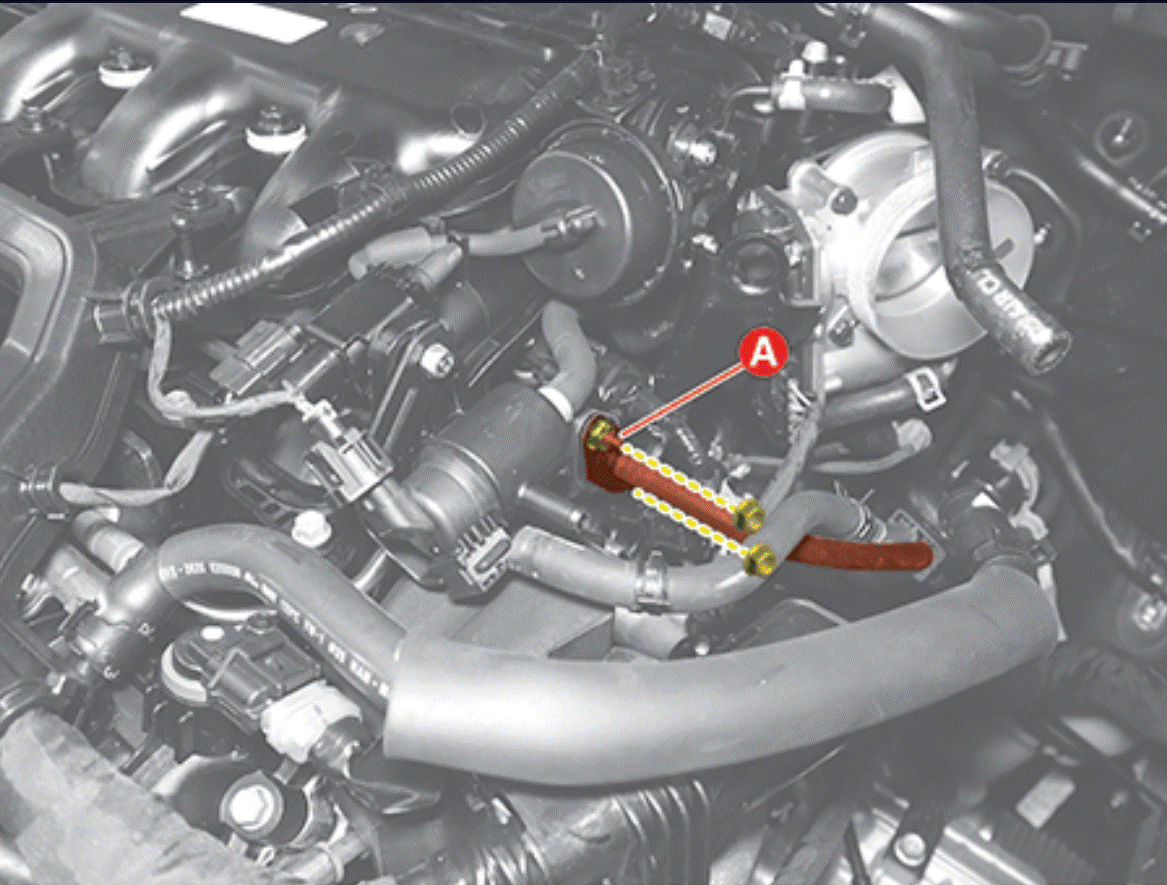

Separate the low pressure fuel line (A) after removing the nuts.
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

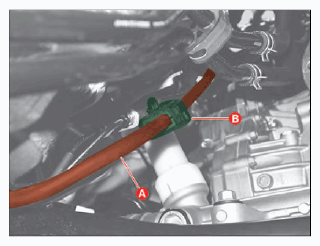

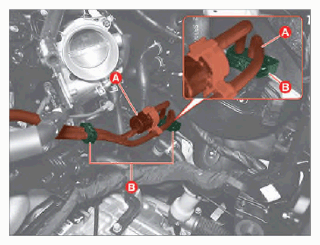

Separate the low pressure fuel line (A) after removing the holders (B).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the fuel tank.
(Refer to Fuel Delivery System - "FUEL TANK ")
Separate the low pressure fuel line (A) after separating the holders (B).

Courtesy of KIA MOTORS AMERICA, INC.

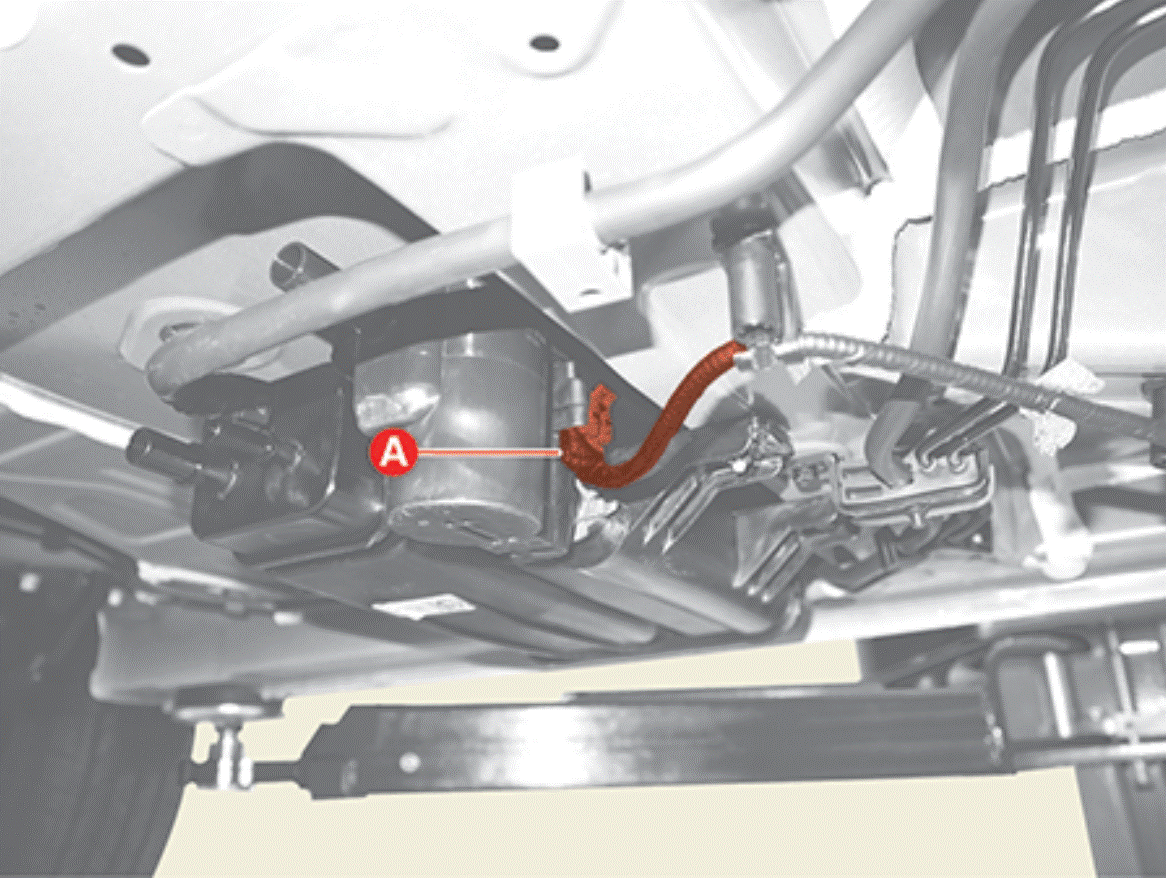

Separate the vapor tube (A).

Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the Canister Close Valve (CCV) connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

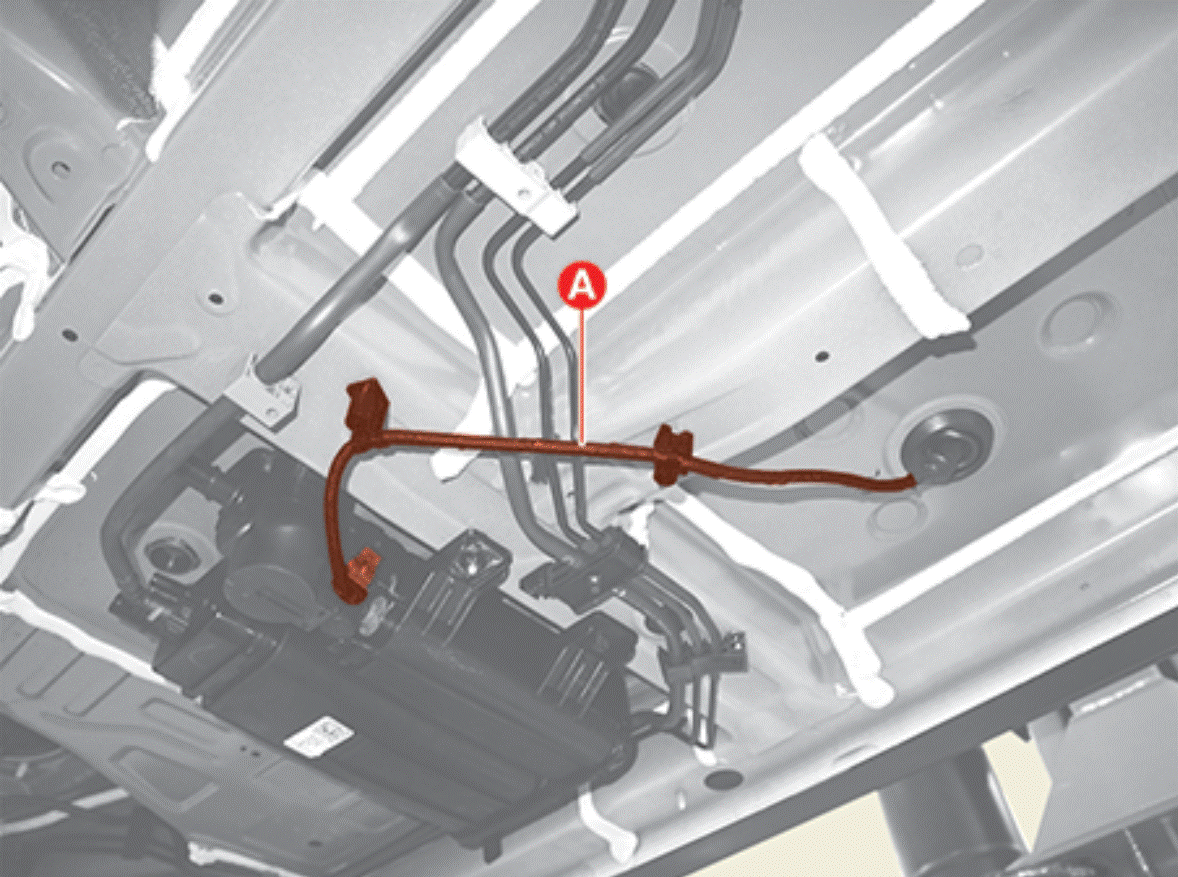

Separate the CCV wiring (A) from the vehicle.

Courtesy of KIA MOTORS AMERICA, INC.

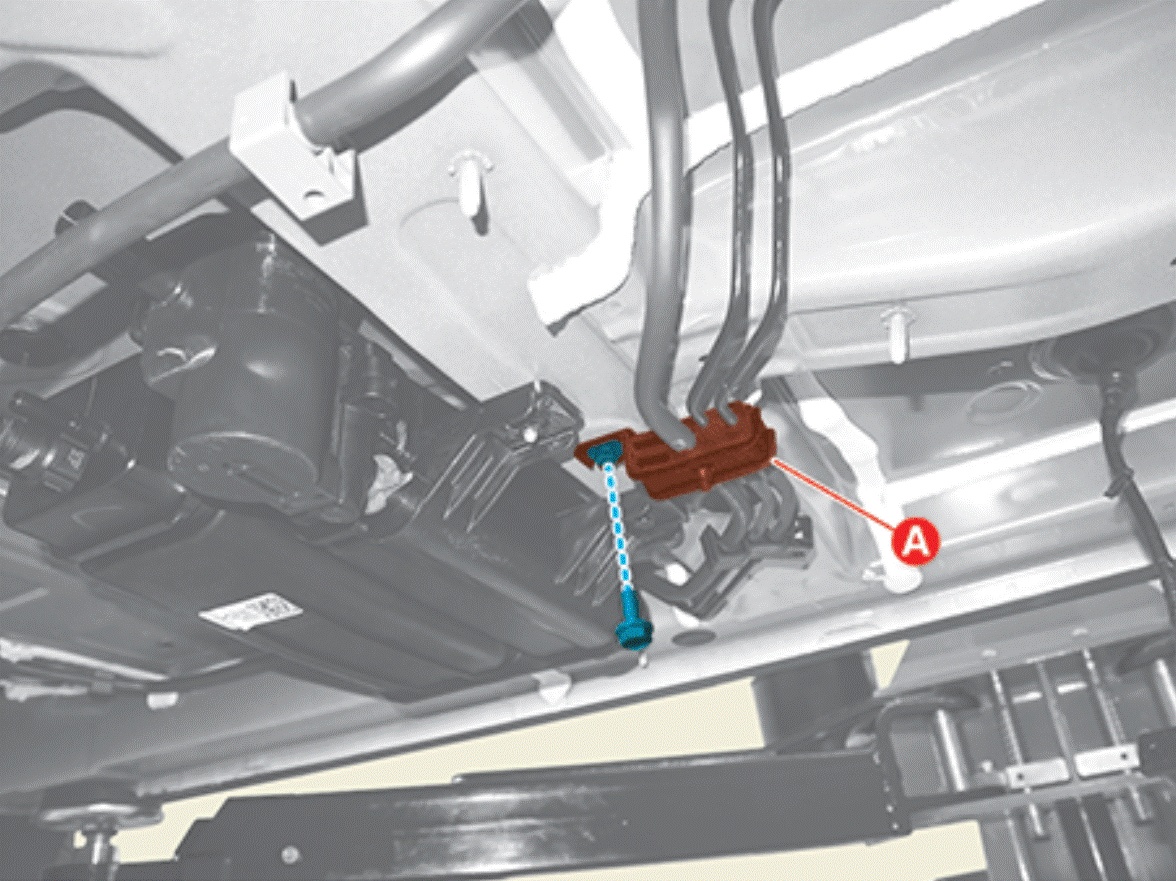

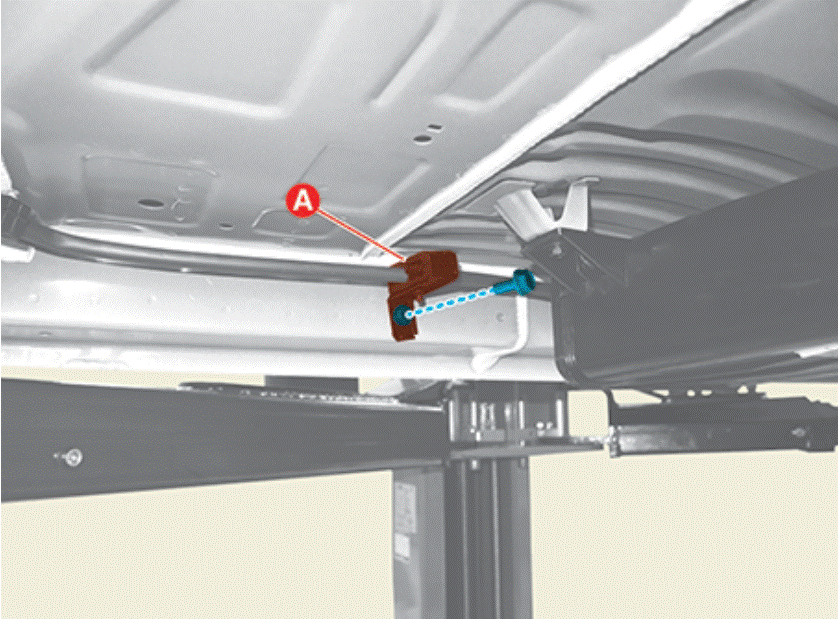

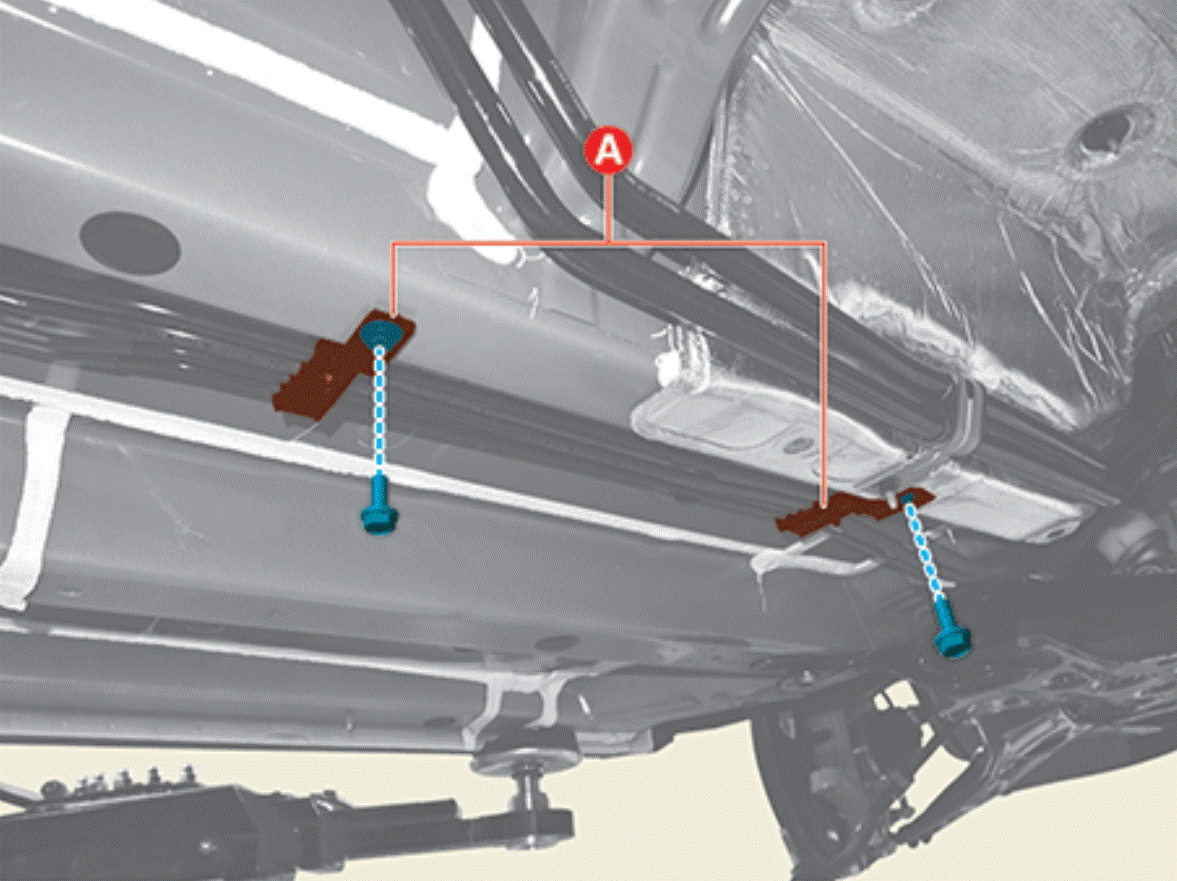

Separate the holders (A) after removing the bolts.
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

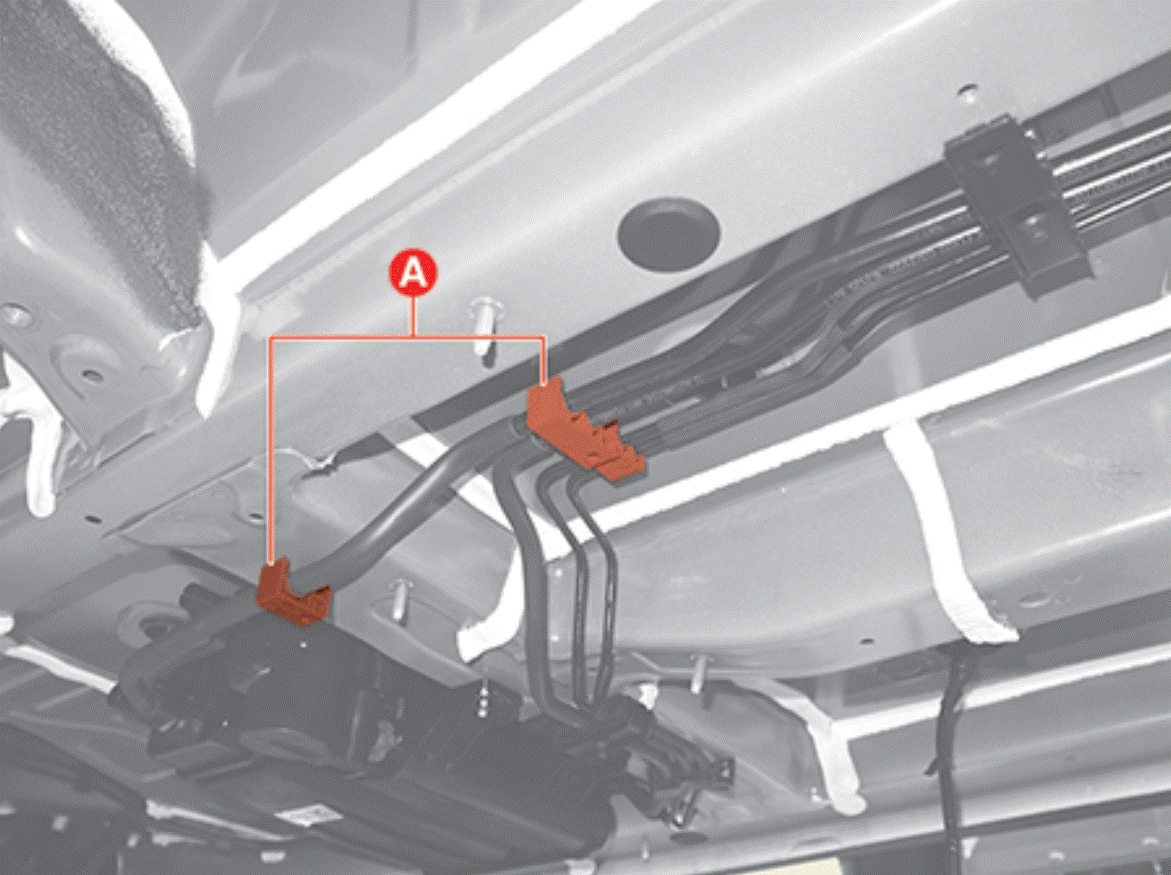

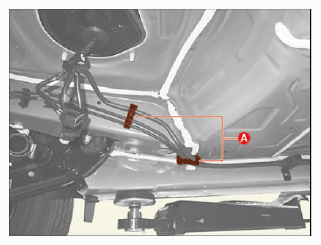

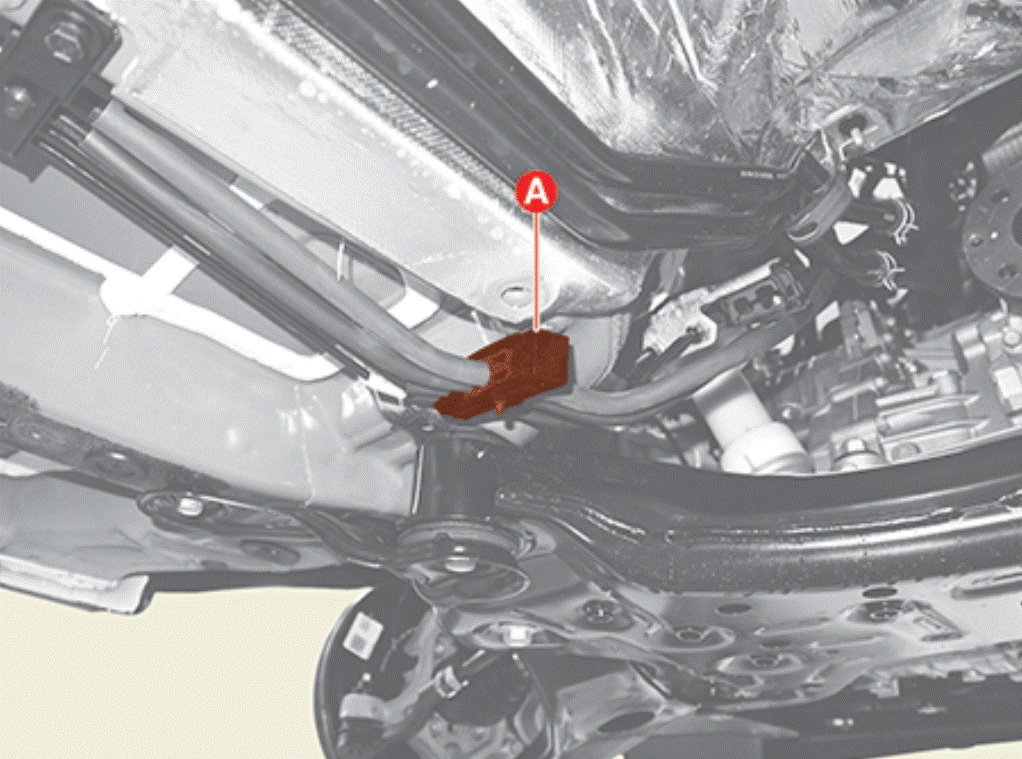

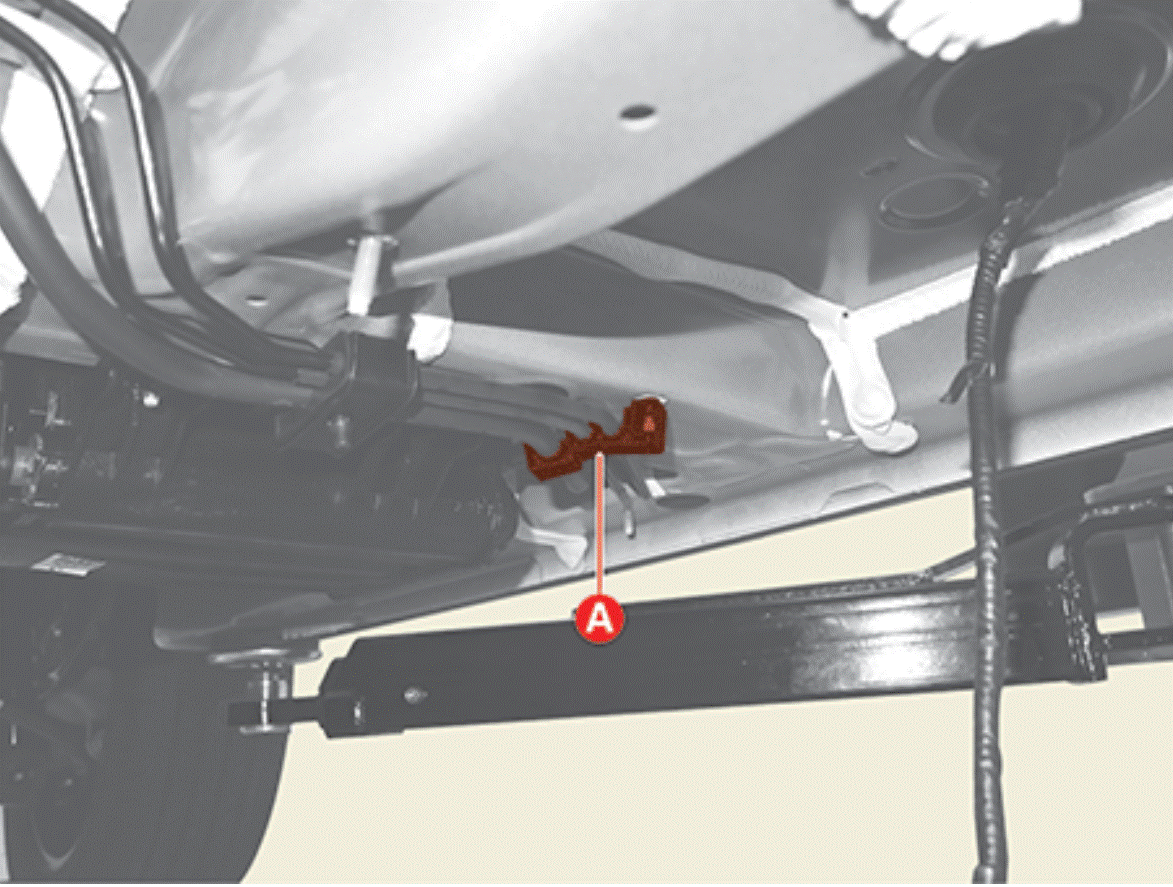

Separate the holders (A).

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

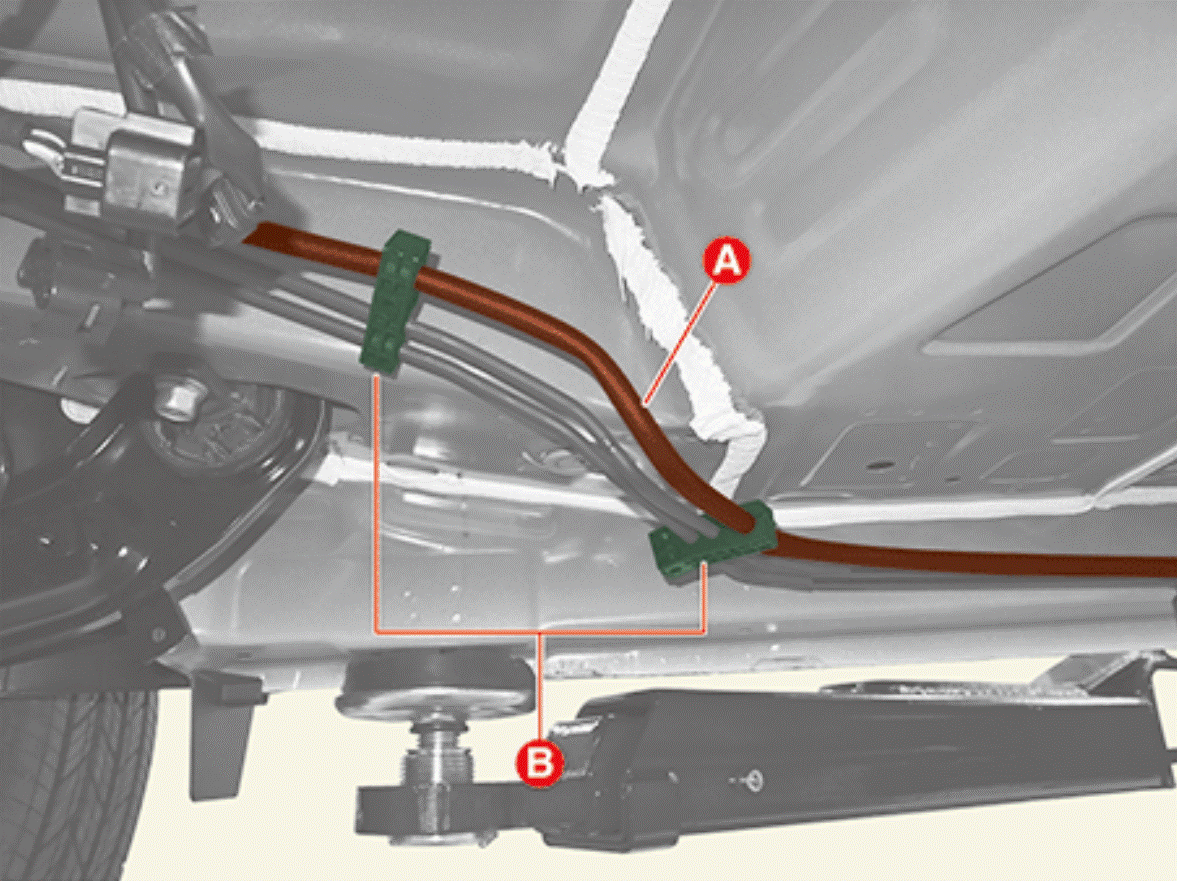

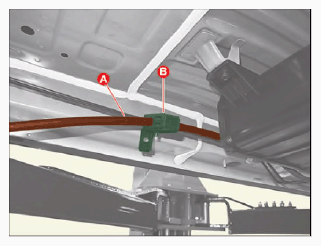

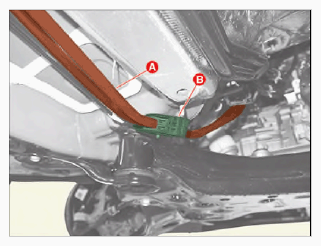

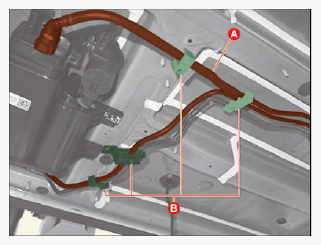

Remove the low pressure fuel line (A) from the vehicle after removing the holders (B).

G15693457

Courtesy of KIA MOTORS AMERICA, INC.

G15693458

Courtesy of KIA MOTORS AMERICA, INC.

G15693459

Courtesy of KIA MOTORS AMERICA, INC.

G15693460

Courtesy of KIA MOTORS AMERICA, INC.

G15693461

Courtesy of KIA MOTORS AMERICA, INC.

G15693462

Courtesy of KIA MOTORS AMERICA, INC.
