High Pressure Fuel Pipe [High Pressure Fuel Pump ↔ Delivery Pipe]

Release the residual pressure in fuel line.
(Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
Disconnect the battery negative (-) terminal.
Remove the engine cover.
(Refer to Engine Mechanical System - "ENGINE COVER ")

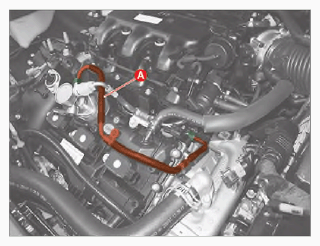

Remove the control wiring harness.

Courtesy of KIA MOTORS AMERICA, INC.

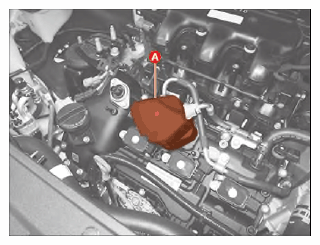

Remove the foams (A).

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

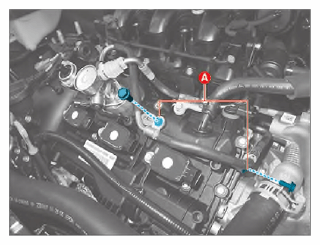

Remove the high pressure pipe bolts (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

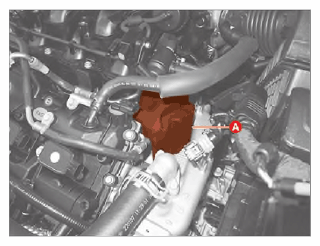

Remove the high pressure pipe (A) after loosening the flange nuts with SST (0K353 - F6100).
Tightening torque:

32.4 - 35.3 N.m (3.3 - 3.6 kgf.m, 23.9 - 26.0 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
