High Pressure Fuel Line [Delivery Pipe (Bank 1) Line ↔ Delivery Pipe (Bank 2) Line]
- Release the residual pressure in fuel line.
(Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
- Disconnect the battery negative (-) terminal.
- Remove the intake manifold.
(Refer to Engine Mechanical System - "INTAKE MANIFOLD ")

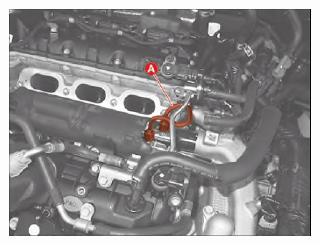

- Remove the cross over high pressure fuel pipe (A).
Tightening torque:
32.4 - 35.3 N.m (3.3 - 3.6 kgf.m, 23.9 - 26.0 lb.ft)
