High Pressure Fuel Pipe [High Pressure Fuel Pump ↔ Delivery Pipe]

Install in reverse order of removal.

NOTE:

Pre-tighten the both side flange nuts by hand when installing the high pressure fuel pipe.

Courtesy of KIA MOTORS AMERICA, INC.

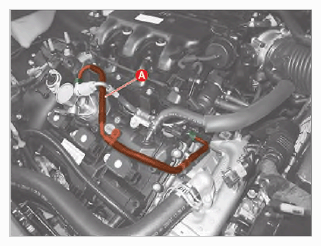

Tighten the high pressure fuel pipe bolt (A) to the specified torque.

Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

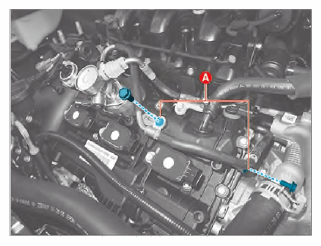

Tighten both flange nuts completely to the specified torque.
Tightening torque: 32.4 - 35.3 N.m (3.3 - 3.6 kgf.m, 23.9 - 26.0 lb.ft)
