Delivery Pipe (Bank 2)

Release the residual pressure in fuel line.
(Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
Remove the intake manifold.
(Refer to Engine Mechanical System - "INTAKE MANIFOLD ")
Remove the high pressure fuel pipe [High Pressure Fuel Pump ↔ Delivery pipe].
(Refer to Fuel Delivery System - "FUEL LINE ")
Remove the cross over high pressure fuel pipe.
(Refer to Fuel Delivery System - "FUEL LINE ")

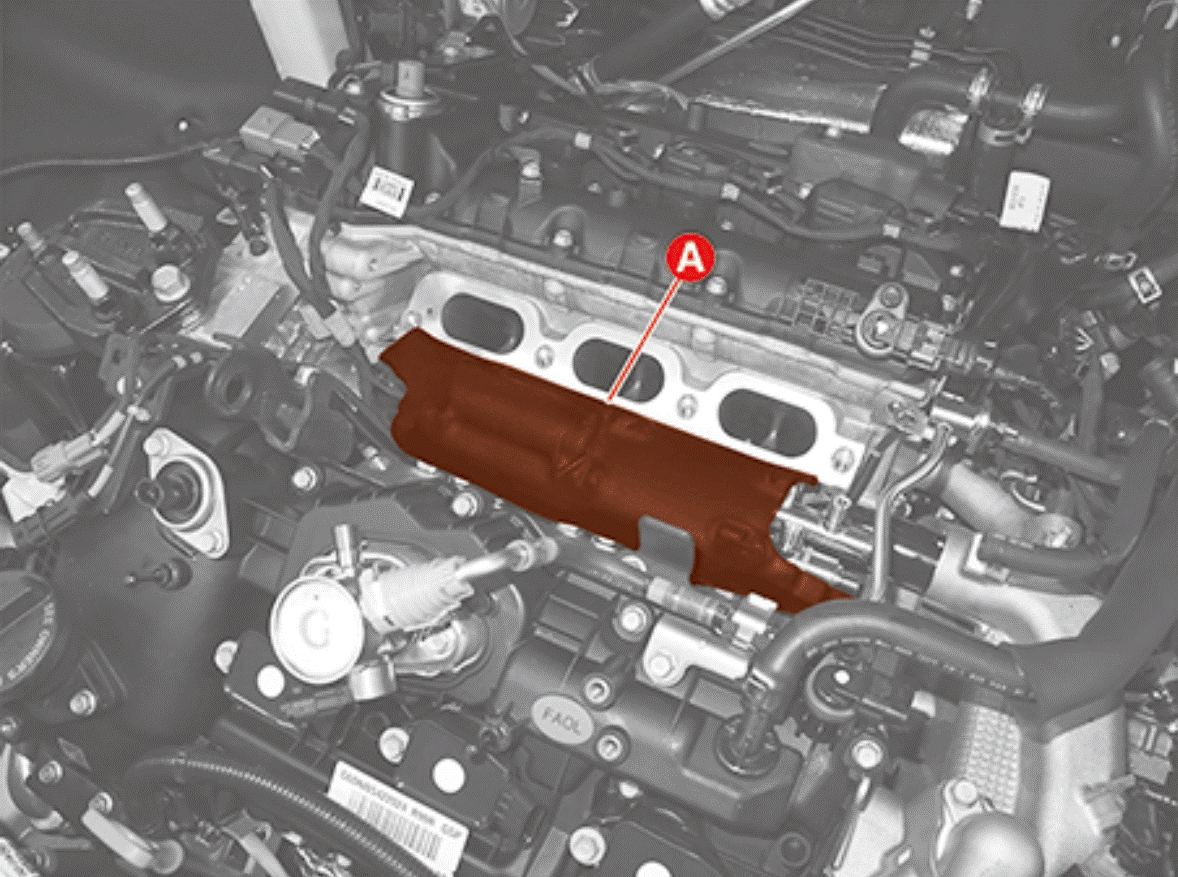

Remove the injector foam (A).

Courtesy of KIA MOTORS AMERICA, INC.

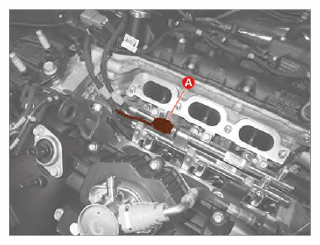

Disconnect the Rail Pressure Sensor (RPS) connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

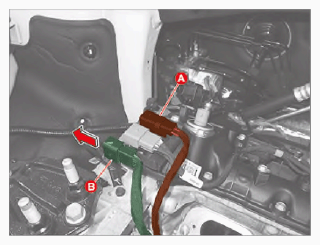

Separate the injector wiring (Bank 2) (B).

Courtesy of KIA MOTORS AMERICA, INC.

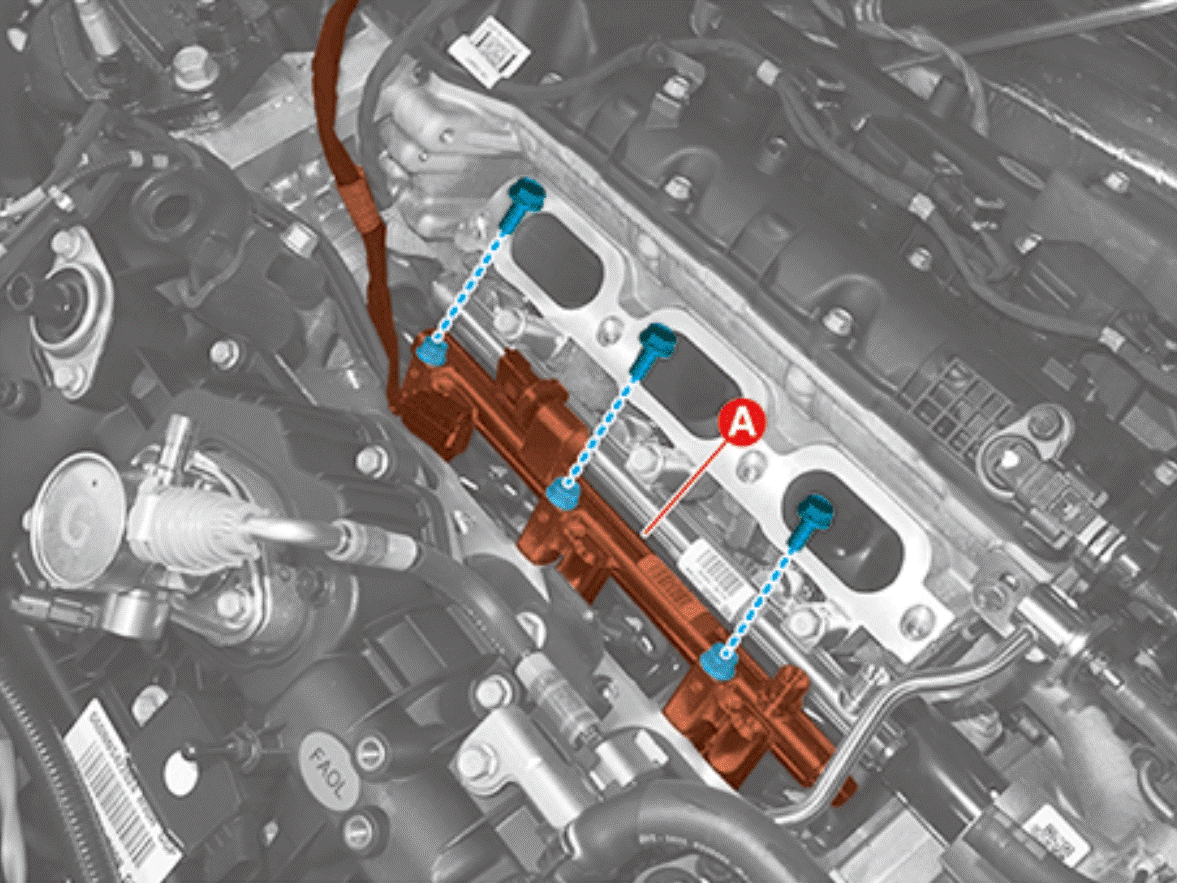

Remove the delivery pipe & injector assembly (Bank 2) (A) after removing the bolts.
Tightening torque:

18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.4 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

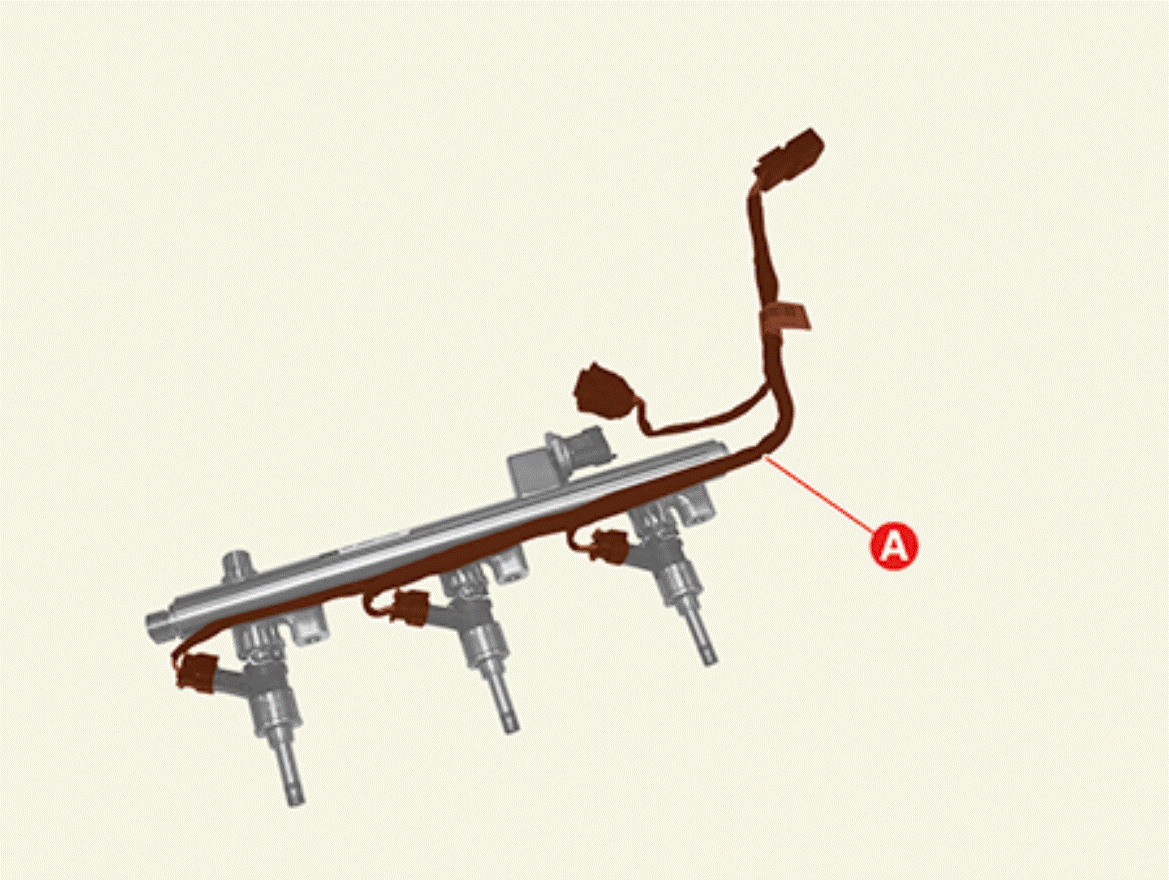

Remove the delivery pipe & injector wiring (A) after disconnecting the injector connectors.

Courtesy of KIA MOTORS AMERICA, INC.

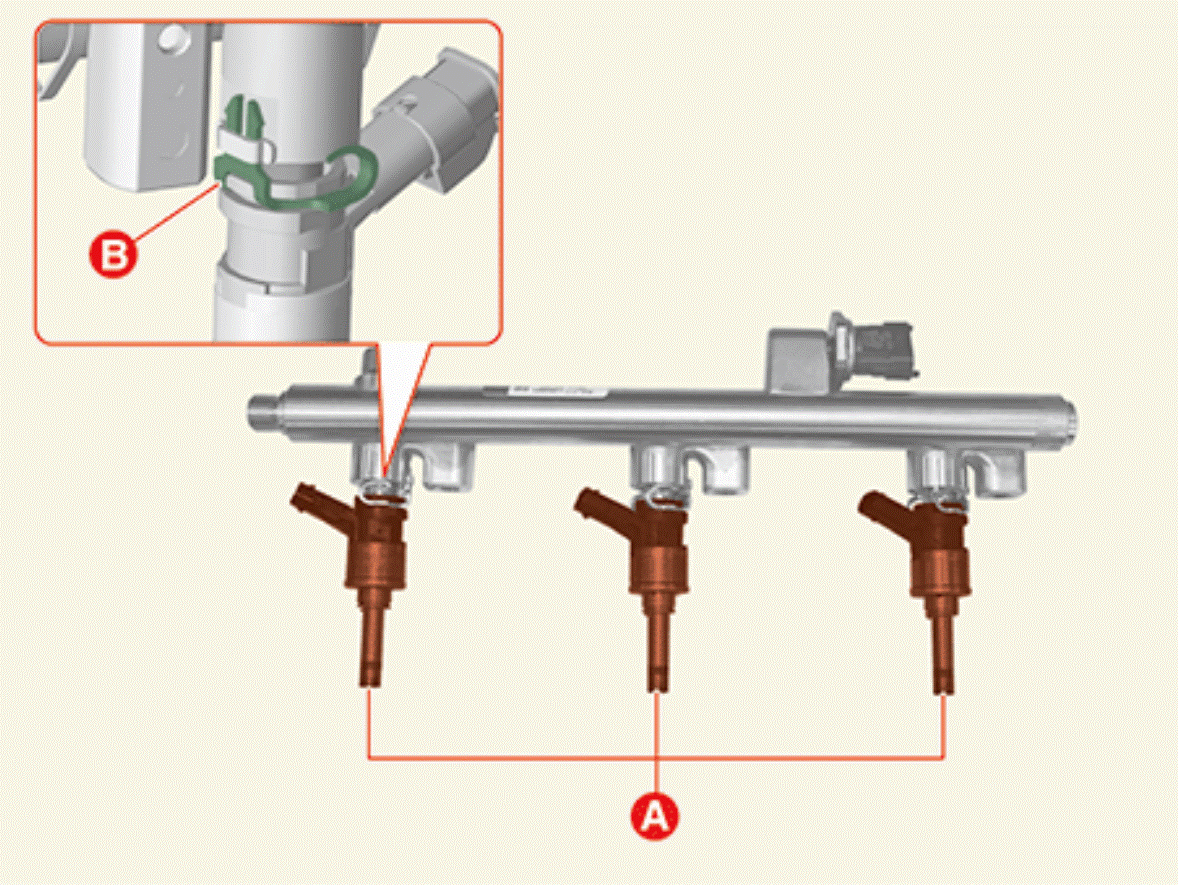

Remove the injectors (A) from the delivery pipe by pressing the pin (B).

Courtesy of KIA MOTORS AMERICA, INC.

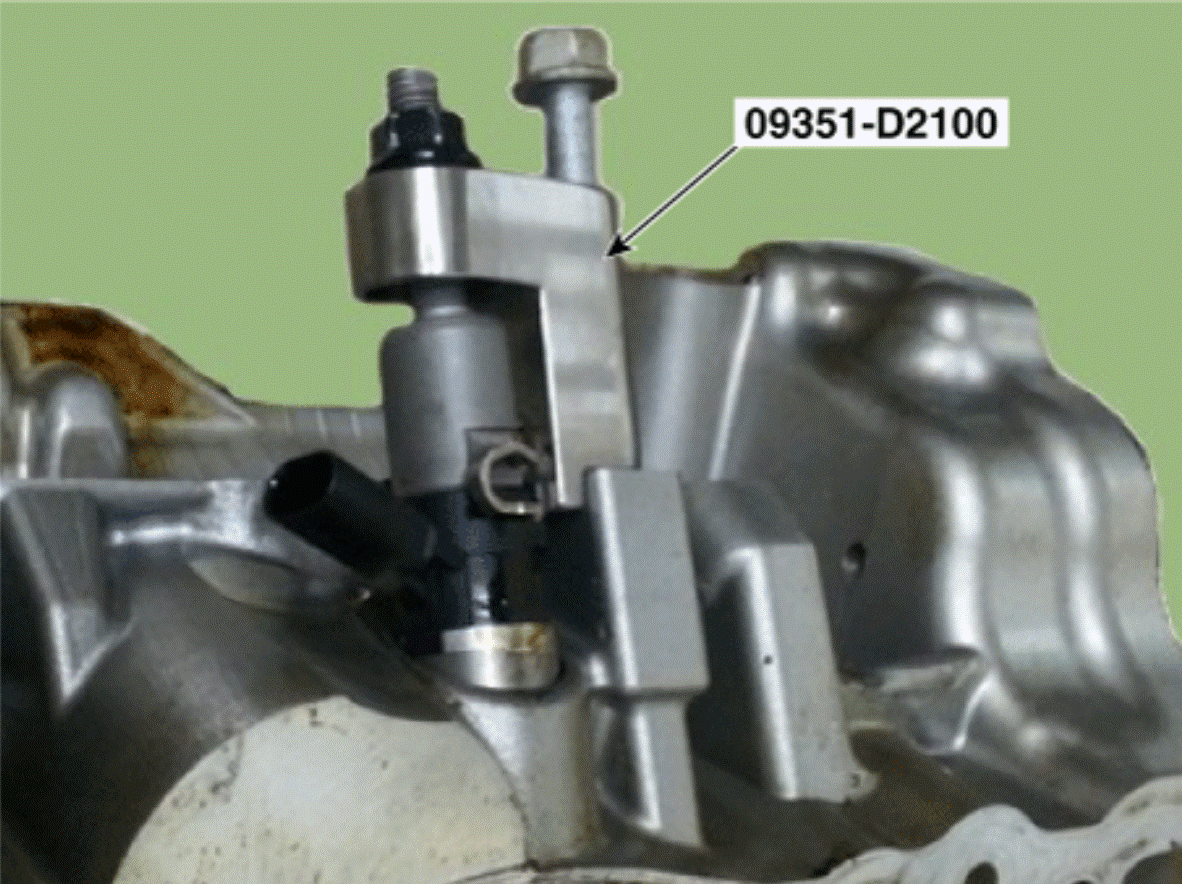

NOTE: If the injector adheres to the cylinder head, remove it by using the (09351-D2100).

Courtesy of KIA MOTORS AMERICA, INC.

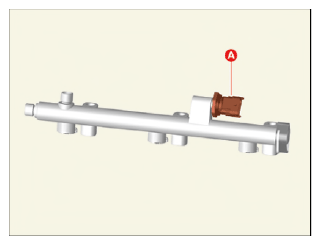

Remove the RPS (A) from the delivery pipe.
Tightening torque:

29.4 - 34.3 N.m (3.0 - 3.5 kgf.m, 21.7 - 25.3 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
