Removal & Installation: Removal: [400W]
- Disconnect the battery negative (-) terminal.
- Remove the cluster.
(Refer to Body Electrical System - "INDICATORS AND GAUGES ")

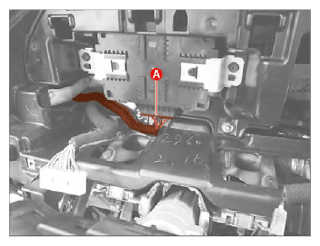

- Disconnect the DC/DC converter connector (A).

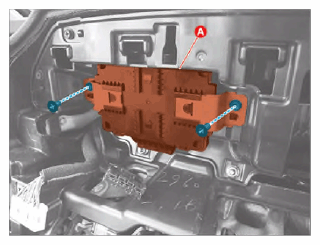

- Remove the DC/DC converter (A) after removing the screws.
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
