Rear Muffler

Remove the rear muffler.
1. Remove the rubber hanger (A).
2. Remove the rear muffler (B) after removing the nuts.
  Tightening torque:

  39.2 - 58.8 N.m (4.0 - 6.0 kgf.m, 28.9 - 43.4 lb.ft)

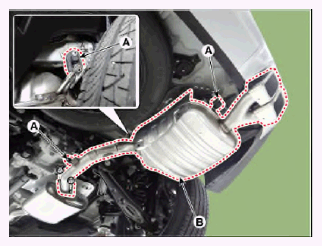

G15692986

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: When installing, replace with new gaskets.
