Front Muffler: (4WD)

  1. Remove the engine room under cover.

    (Refer to Engine And Transaxle Assembly - "ENGINE ROOM UNDER COVER ")

  2. Remove the sub frame.

    (Refer to Suspension System - "SUB FRAME ")

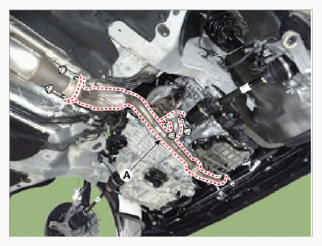

  3. Remove the front muffler (A) after removing the nuts.

    Tightening torque:

    39.2 - 58.8 N.m (4.0 - 6.0 kgf.m, 28.9 - 43.4 lb.ft)

    G15692984Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: When installing, replace with new gaskets.
