Front Muffler: (2WD)

Remove the engine room under cover.
(Refer to Engine And Transaxle Assembly - "ENGINE ROOM UNDER COVER ")
Remove the front muffler.

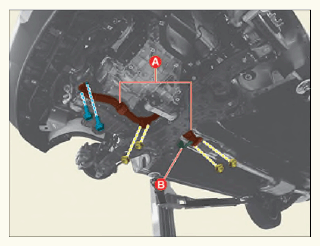

1. Remove the rubber hanger (B).
2. Remove the front muffler (A) after removing the bolts and nuts.
  Tightening torque:

  39.2 - 58.8 N.m (4.0 - 6.0 kgf.m, 28.9 - 43.4 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: When installing, replace with new gaskets.
