Catalytic Converter & Center Muffler Assembly

  1. Remove the catalytic converter & center muffler assembly

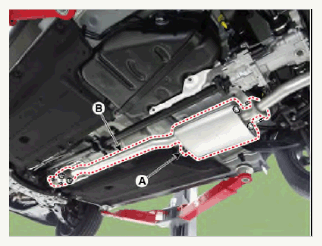

    1. Remove the rubber hanger (A).
    2. Remove the catalytic converter & center muffler assembly (B) after removing the nuts.

      Tightening torque:

      39.2 - 58.8 N.m (4.0 - 6.0 kgf.m, 28.9 - 43.4 lb.ft)

G15692985Courtesy of KIA MOTORS AMERICA, INC.
