RH Exhaust Manifold

  1. Install in the reverse order of removal.
    NOTE: When installing, pre-tighten the nuts in the order shown in the figure and then fully tighten them to the specified torque.

    [2WD]

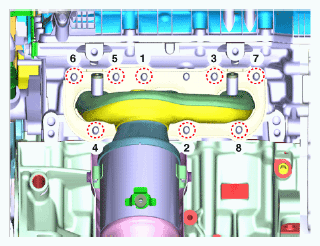

    Fig 1: RH Exhaust Manifold Nuts Tightening Sequence (2WD)
    G15692980Courtesy of KIA MOTORS AMERICA, INC.

    [AWD]

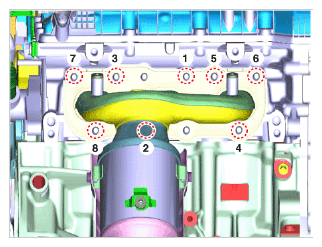

    Fig 2: RH Exhaust Manifold Nuts Tightening Sequence (AWD)
    G15692981Courtesy of KIA MOTORS AMERICA, INC.
