Air Cleaner Element

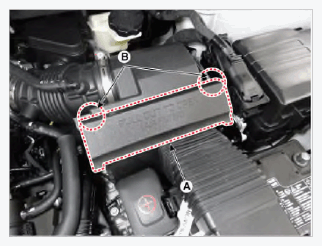

Open the air cleaner element cover (A) by lifting down the air cleaner element cover handle (B).

Courtesy of KIA MOTORS AMERICA, INC.

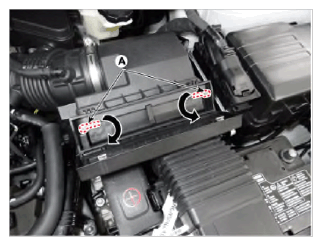

Unlock the air cleaner element camshaft (A) by turning in the direction of arrow.

Courtesy of KIA MOTORS AMERICA, INC.

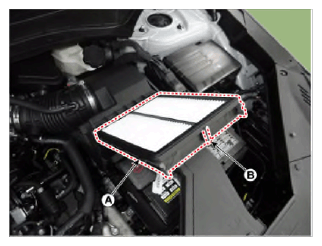

Replace the air cleaner element (A) with a new one.

Courtesy of KIA MOTORS AMERICA, INC.

Information

Grab the handle (B) then pull out the air cleaner element.
Lock the air cleaner element camshaft and then close the air cleaner element cover.
