Removal & Installation: Removal: Notes

Information

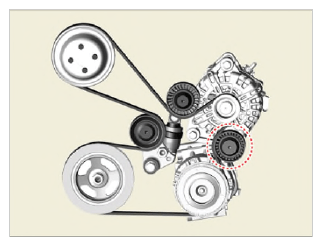

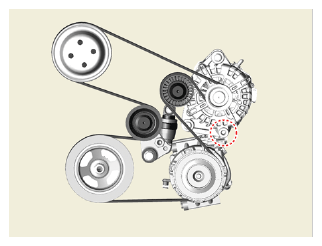

There are two types of drive belt layouts. Depending on the type, refer to the correct type of repair procedure.

A Type	B Type
Courtesy of KIA MOTORS AMERICA, INC.	Courtesy of KIA MOTORS AMERICA, INC.
