Removal & Installation: Removal

Remove the engine room under cover.
(Refer to Engine And Transaxle Assembly - "ENGINE ROOM UNDER COVER ")

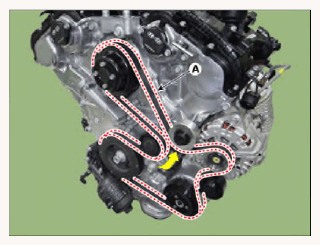

To release the tension, turn the drive belt tensioner counterclockwise and then remove the drive belt (A).

Type A

Courtesy of KIA MOTORS AMERICA, INC.

Type B

Courtesy of KIA MOTORS AMERICA, INC.

NOTE:

Install the drive belt in the following order:
Crankshaft damper pulley → A/C compressor pulley → Idler pulley → Alternator pulley → Idler pulley → Water pump pulley → Drive belt auto tensioner pulley.

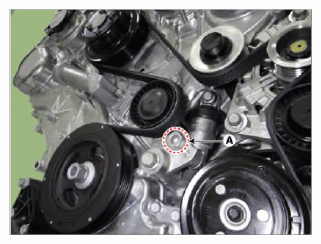

Rotate the auto tensioner arm by turning the auto tensioner arm boss (A) counterclockwise using a wrench. After installing the drive belt to the auto tensioner pulley, slowly release the auto tensioner arm.

Courtesy of KIA MOTORS AMERICA, INC.

Make sure the belt is installed in the same position it was assembled at the factory.
