Removal & Installation: Installation

Install in the reverse order of removal.

NOTE:

When installing the drive belt in the engine, make sure that the layout of drive belt (A) has to be same as it was.

Courtesy of KIA MOTORS AMERICA, INC.

Depending on production data, the layout is different as below. (There's no idler (red marked))

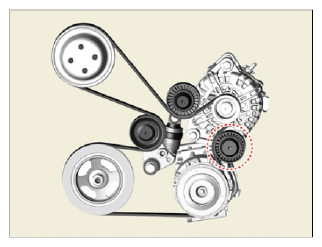

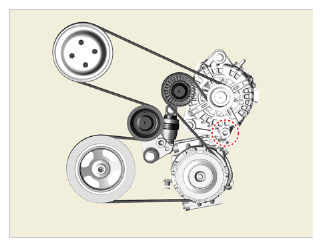

A Type	B Type
Courtesy of KIA MOTORS AMERICA, INC.	Courtesy of KIA MOTORS AMERICA, INC.
