Removal & Installation: Removal
- Remove the drive belt.
(Refer to Drive Belt System - "DRIVE BELT ")

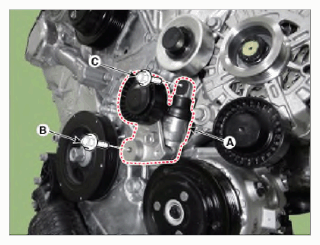

- Remove the drive belt auto tensioner (A) after removing the bolts (B) and (C).
Tightening torque
Bolt (B): 81.4 - 85.3 N.m (8.3 - 8.7 kgf.m, 60.0 - 62.9 lb.ft)
Bolt (C): 17.7 - 21.6 N.m (1.8 - 2.2 kgf.m, 13.0 - 15.9 lb.ft)
