Removal & Installation: Removal

  1. Remove the engine room under cover.

    (Refer to Engine And Transaxle Assembly - "ENGINE ROOM UNDER COVER ")

  2. Remove the RH side front wheel.

    (Refer to Suspension System - "WHEEL ")

  3. Remove the drive belt.

    (Refer to Drive Belt System - "DRIVE BELT ")

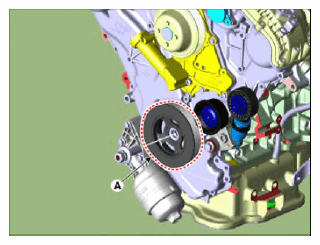

  4. Remove the crankshaft damper pulley (A) after removing the bolt.

    Tightening torque:

    421.7 - 431.5 N.m (43.0 - 44.0 kgf.m, 311.0 - 318.3 lb.ft)

G15692923Courtesy of KIA MOTORS AMERICA, INC.
NOTE: There are two methods to hold the ring gear when installing or removing the crankshaft damper pulley.

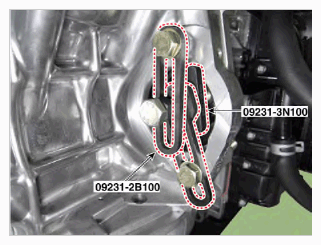

  • Install the SSTs (09231-2B100, 09231-3N100) to hold the ring gear after removing the starter.

    (Refer to Engine Electrical System - "STARTER ")

    G15692924Courtesy of KIA MOTORS AMERICA, INC.
  • Install the SST (09231-3D100, 09231-2W100) to hold the ring gear after removing the dust cover.
    1. Remove the front muffler.

      (Refer to Intake and Exhaust System - "MUFFLER ")

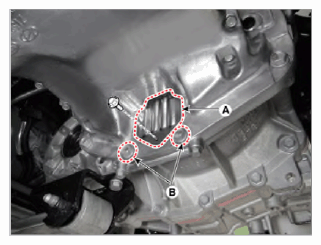

    2. Remove the dust cover (A) on the bottom of the upper oil pan and unfasten the two transaxle mounting bolts (B).
      G15692925Courtesy of KIA MOTORS AMERICA, INC.

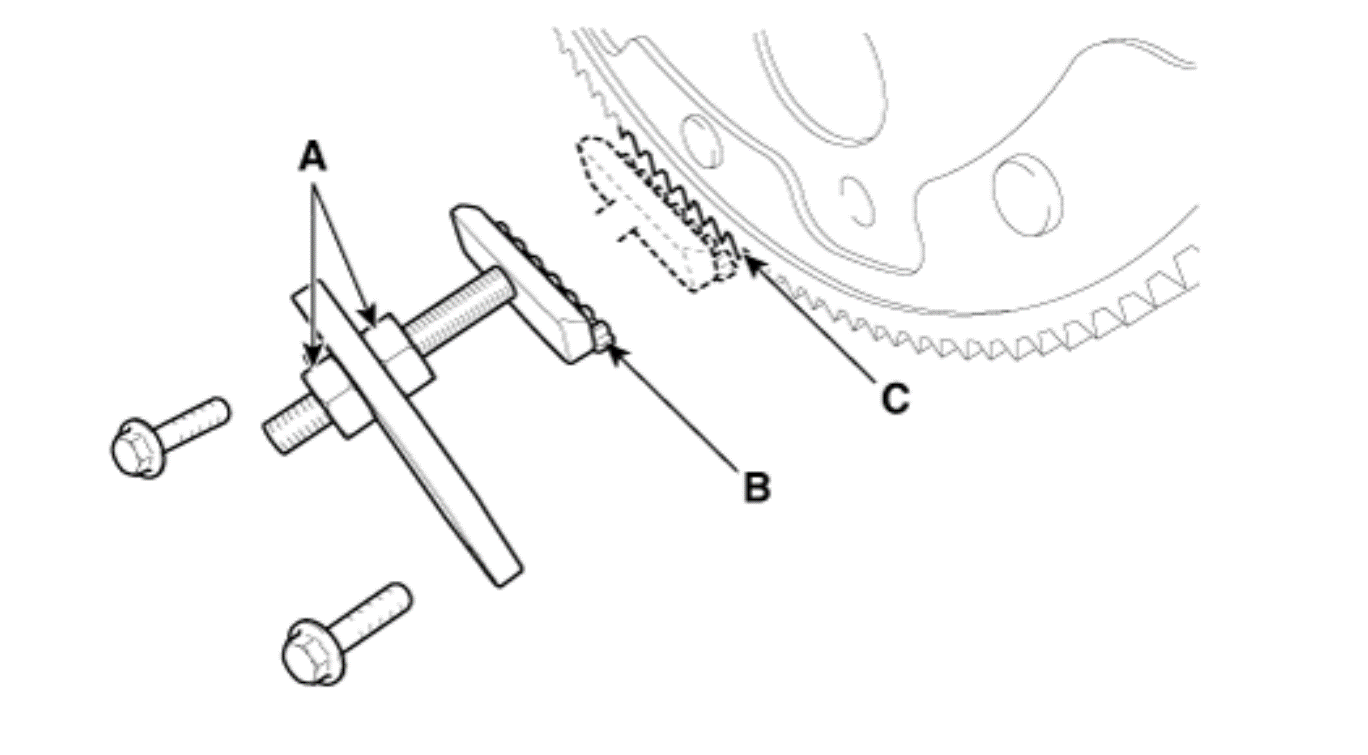

    3. Adjust the length of the holder nuts (A) so that the front place of the holder (B) matches with the ring gear (C) tooth pattern.
    4. Fasten the two transaxle mounting bolts in the original mounted holes.
      G15692926Courtesy of KIA MOTORS AMERICA, INC.

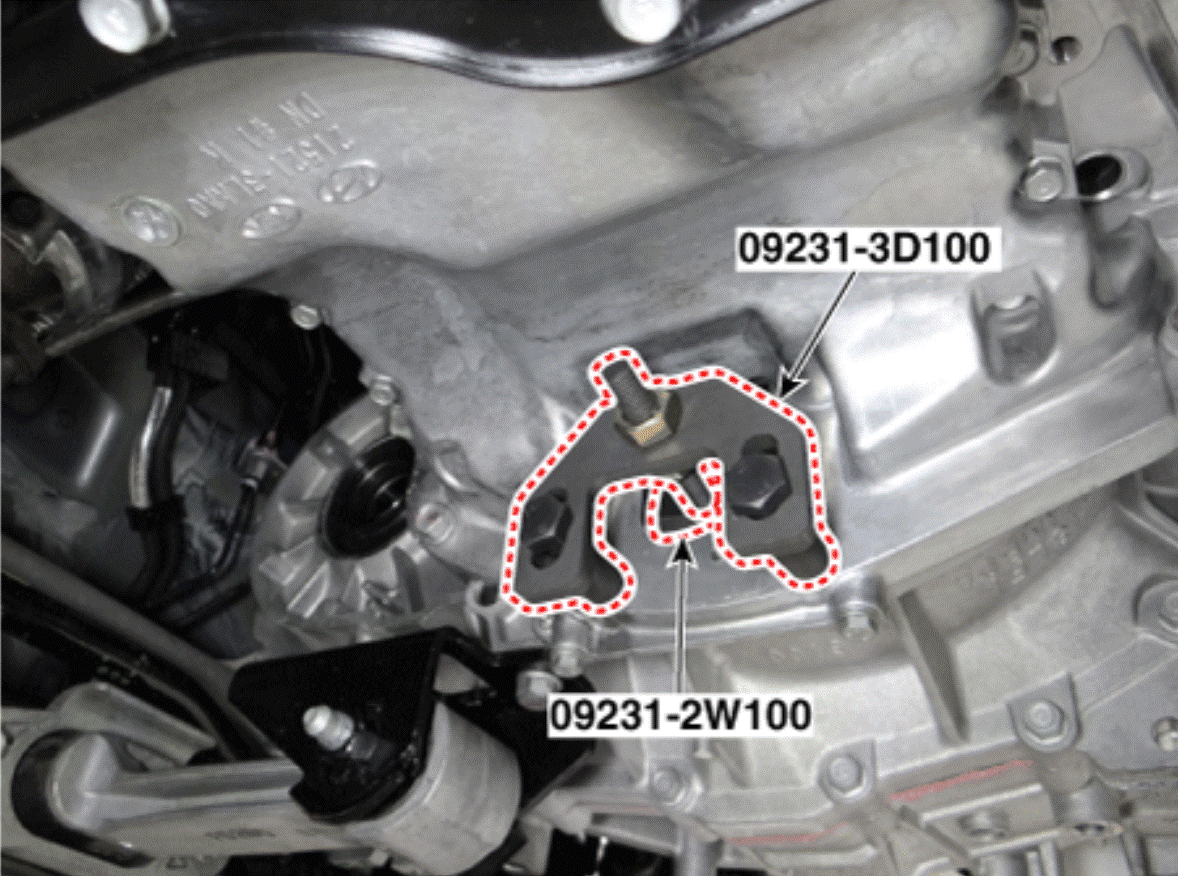

    5. Install the SST (09231-3D100, 09231-2W100) using the two mounting bolts. Tighten the bolts and nuts of the holder securely.
G15692927Courtesy of KIA MOTORS AMERICA, INC.
