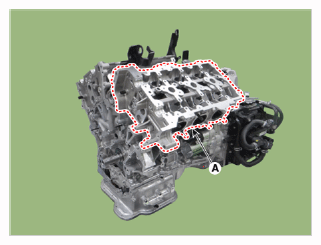

LH Cylinder Head

Install the cylinder LH head.

The sealant locations on cylinder head and cylinder block must be free of engine oil and ETC.

Apply TB 1217H sealant on cylinder block top face before assembling cylinder head gaskets.

Assemble the part within 5 minutes of applying sealant.

Courtesy of KIA MOTORS AMERICA, INC.

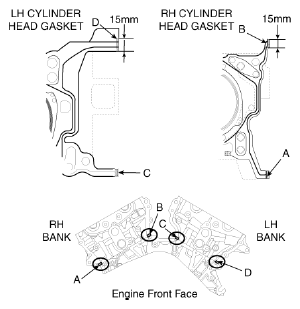

NOTE: Apply sealant by referring to the following illustration.

Bead width: 2.0 - 3.0 mm (0.078 - 0.118 in.)

Sealant locations: 1.0 - 1.5 mm (0.039 - 0.059 in.) from block surface

Recommended sealant : TB 1217H (Hyundai Gray RTV) Liquid sealant

Courtesy of KIA MOTORS AMERICA, INC.

Apply TB 1217H sealant on cylinder head gaskets after assembling cylinder head gaskets on cylinder block.

Assemble the part within 5 minutes of applying sealant.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Be fully aware of the installation direction.

Courtesy of KIA MOTORS AMERICA, INC.

Install the LH cylinder head.
NOTE: Remove the extruded sealant after assembling cylinder heads.

Courtesy of KIA MOTORS AMERICA, INC.

Install the LH cylinder head bolts.
1. Do not apply engine oil on the threads and under the heads of the cylinder head bolts.
2. Install and tighten the cylinder head bolts and plate washers, in several passes, in the sequence shown.
  NOTE: Always use new cylinder head bolts. Cylinder head bolts are torque-to-yield bolts designed to be permanently elongated beyond the state of elasticity when torqued, so if the bolts are removed and reused, it may cause the bolts to break or fail to maintain clamping force.

  Tightening torque:

  Step 1: 37.3 - 41.2 N.m (3.8 - 4.2 kgf.m, 27.5 - 30.4 lb.ft)

  Step 2: 118 - 122°

  Step 3: 88 - 92°
Fig 1: LH Cylinder Head Bolts Tightening Sequence
Courtesy of KIA MOTORS AMERICA, INC.
Install the remaining parts in the reverse order of removal.
NOTE: Install the cylinder head to the specified torque.
