Cylinder Head

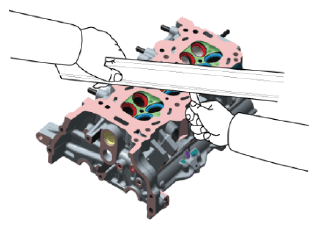

Using a precision straight edge and feeler gauge, measure the warpage of the surface contacting with the cylinder block

If the flatness is greater than maximum, replace the cylinder head.

Flatness of cylinder head gasket surface

Standard: Less than 0.05 mm (0.002 in.)

[Less than 0.02 mm (0.0008 in.)/150x150]

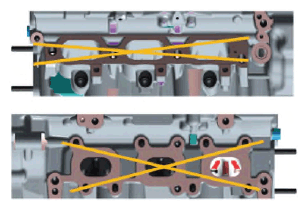

Flatness of manifold gasket surface

Standard: Less than 0.01 mm (0.004 in)/110x110

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Check the combustion chamber, intake ports, exhaust ports and cylinder block surface for cracks. If cracked, replace the cylinder head.
