Special Service Tools
| Tool Name/Number |
Illustration |
Description |

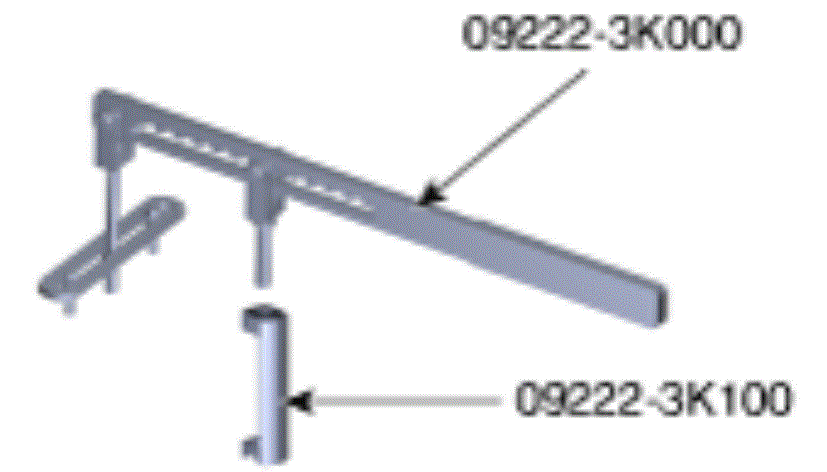

Valve spring compressor & holder
- 09222-3K000
- 09222-3K100
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
Used for removing/installing intake or exhaust valve |
Disassembly
NOTE:
Identify MLA, valves and valve springs as they are removed so that each item can be reinstalled in its original position.

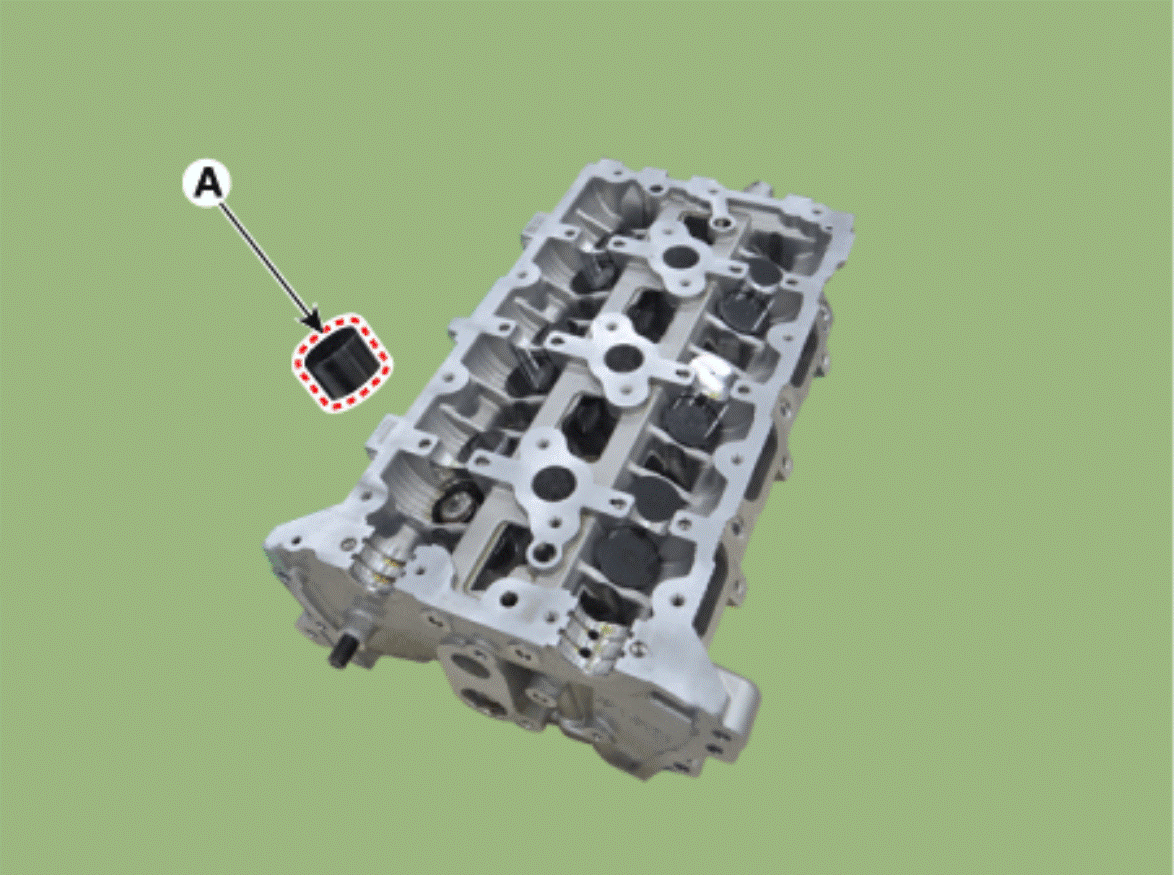

- Remove the MLAs (A).
 Courtesy of KIA MOTORS AMERICA, INC.
|
- Remove the valves.

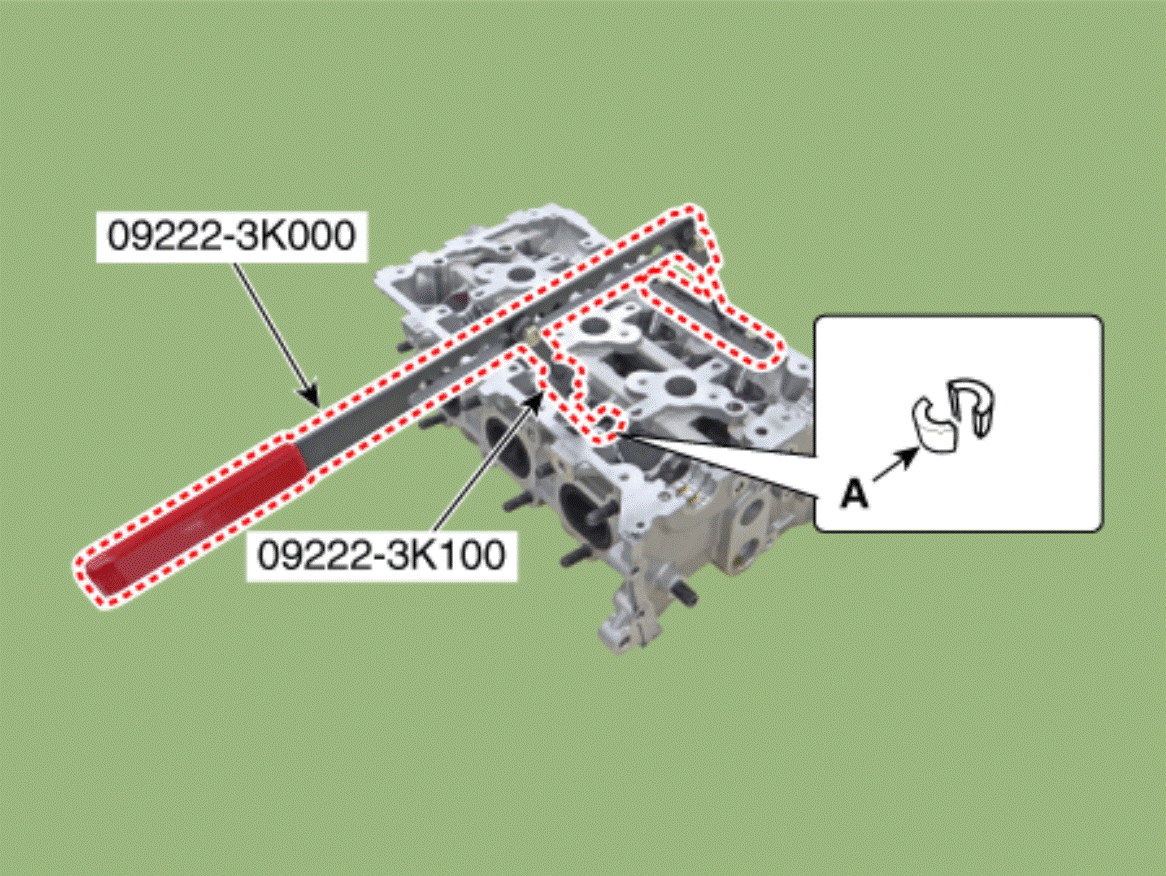

- Using the SSTs (09222-3K000, 09222-3K100), compress the valve spring and remove retainer lock (A).
 Courtesy of KIA MOTORS AMERICA, INC.
|

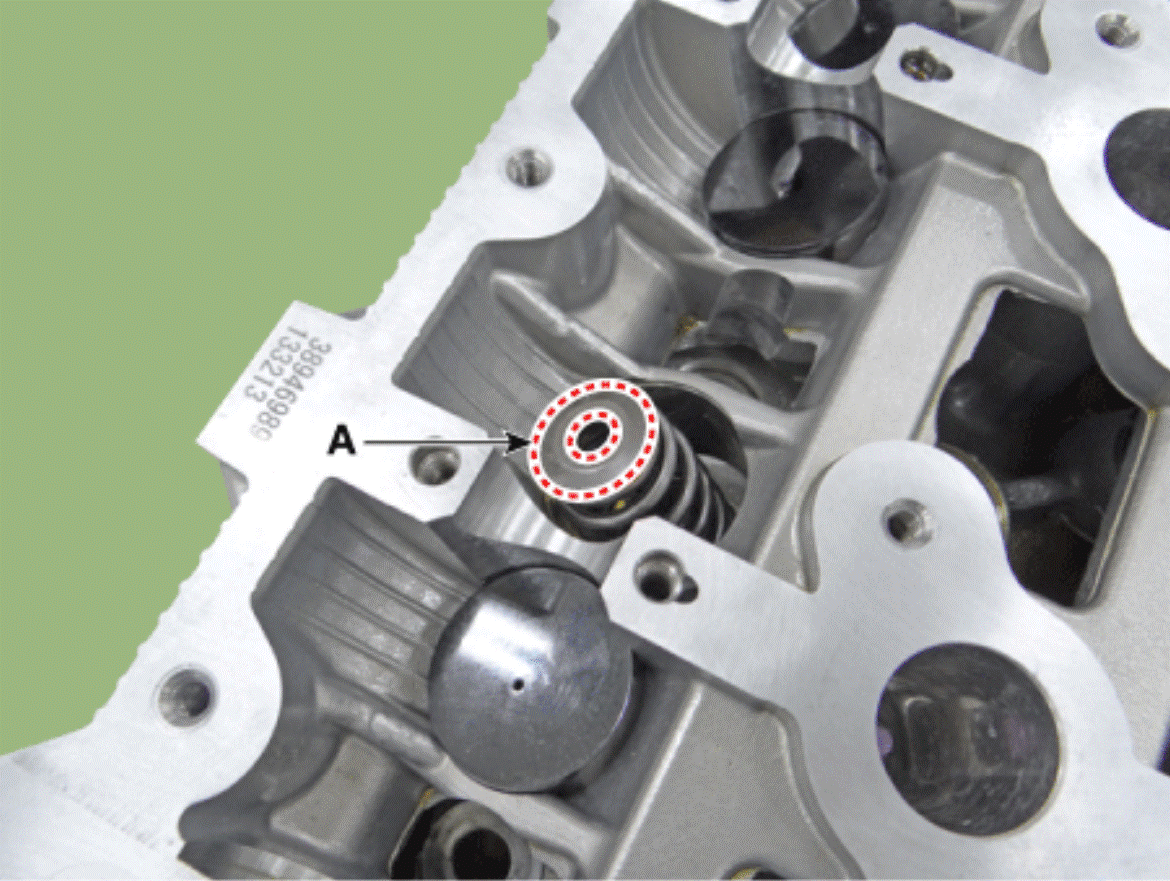

- Remove the spring retainer (A).
 Courtesy of KIA MOTORS AMERICA, INC.
|

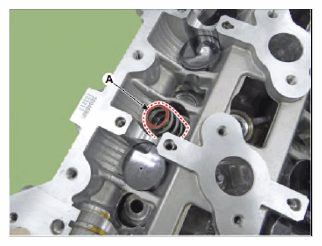

- Remove the valve spring (A).
 Courtesy of KIA MOTORS AMERICA, INC.
|

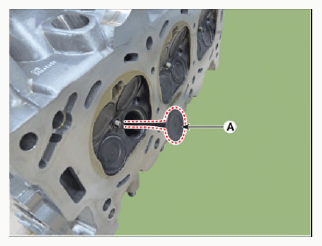

- Remove the valve (A).
 Courtesy of KIA MOTORS AMERICA, INC.
|

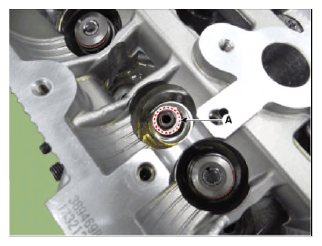

- Remove the valve stem seal (A).
 Courtesy of KIA MOTORS AMERICA, INC.
|
NOTE:
Do not reuse old valve stem seals.
