[LH Cylinder Head Cover]

  1. Remove the engine cover.

    (Refer to Engine And Transaxle Assembly - "ENGINE COVER ")

  2. Remove the air cleaner assembly.

    (Refer to Intake And Exhaust System - "AIR CLEANER ")

  3. Disconnect the control wiring harness connectors and fasteners and remove the wiring harness protectors from the LH cylinder head cover.
    G15692778Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the LH ignition coils.

    (Refer to Engine Electrical System - "IGNITION COIL ")

  5. Remove the surge tank.

    (Refer to Intake And Exhaust System - "SURGE TANK ")

  6. Remove the high pressure fuel pump.

    (Refer to Engine Control/Fuel System - "HIGH PRESSURE FUEL PUMP ")

  7. Remove the LH cylinder head cover.

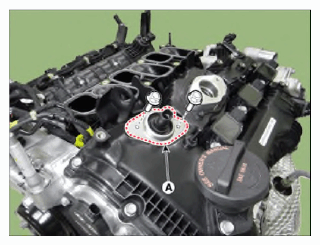

    1. Remove the LH exhaust CVVT oil control valve cap (A) after removing the bolts.
      G15692779Courtesy of KIA MOTORS AMERICA, INC.

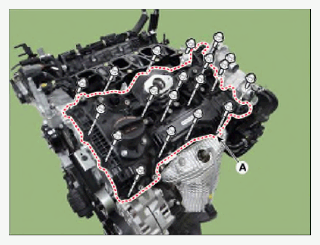

    2. Remove the LH cylinder head cover (A) and gasket after removing the bolts.
    G15692780Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: Cover the cylinder head with a clean shop rag or vinyl cover to prevent foreign materials from entering.
