LH CVVT & Camshaft

Set No. 1 cylinder to Top Dead Center (TDC) on compression stroke.

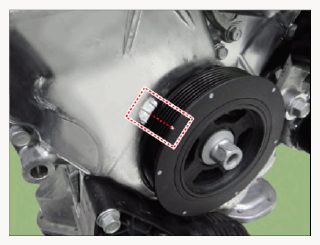

Turn the crankshaft pulley clockwise and align its groove with the timing mark "T" of the lower timing chain cover.

Courtesy of KIA MOTORS AMERICA, INC.

Remove the LH cylinder head cover.
(Refer to Cylinder Head Assembly - "CYLINDER HEAD COVER ")
Check that the mark of the camshaft timing sprockets is in straight line on the cylinder head surface as shown in the illustration. If not, turn the crankshaft clockwise one revolution (360°).

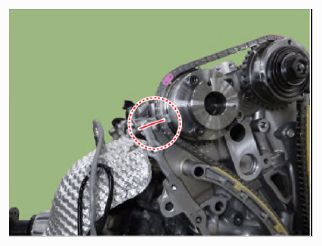

[LH Intake]

Courtesy of KIA MOTORS AMERICA, INC.

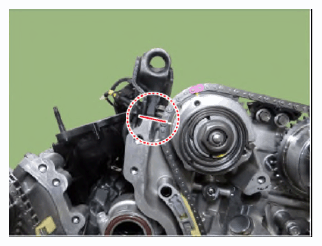

[LH Exhaust]

Courtesy of KIA MOTORS AMERICA, INC.

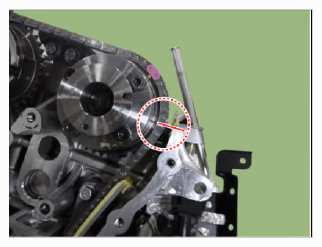

[RH Intake]

Courtesy of KIA MOTORS AMERICA, INC.

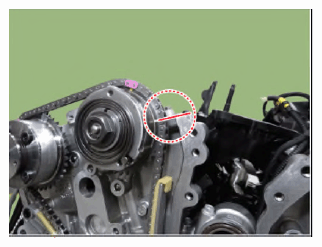

[RH Exhaust]

Courtesy of KIA MOTORS AMERICA, INC.

Remove the timing chain.
(Refer to Timing System - "TIMING CHAIN ")

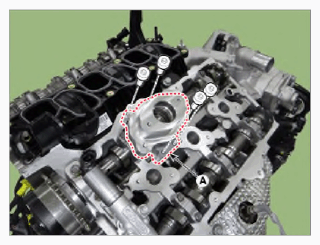

Remove the fuel pump bracket (A) after removing the bolts.

Courtesy of KIA MOTORS AMERICA, INC.

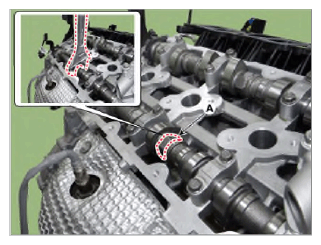

Remove the LH exhaust camshaft Oil Control Valve (OCV) (A).

Courtesy of KIA MOTORS AMERICA, INC.

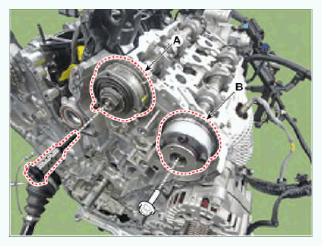

Remove the LH intake CVVT assembly (A) and exhaust CVVT assembly (B) after removing the bolts.

Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- To prevent impurities from entering intake OCV & center bolt, wear rubber gloves.
- When removing the CVVT assembly bolt, place a wrench at position (A) to prevent the camshaft from rotating.
Courtesy of KIA MOTORS AMERICA, INC.

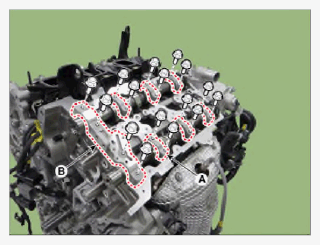

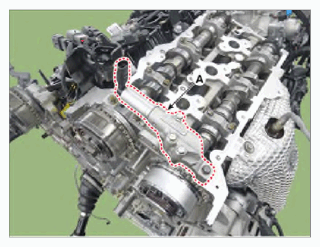

Remove the LH camshaft bearing cap (A) and thrust bearing cap (B).

Courtesy of KIA MOTORS AMERICA, INC.

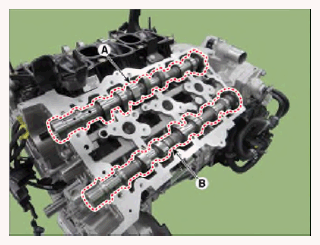

Remove the LH intake camshaft (A) and exhaust camshaft (B).

Courtesy of KIA MOTORS AMERICA, INC.
