RH CVVT & Camshaft

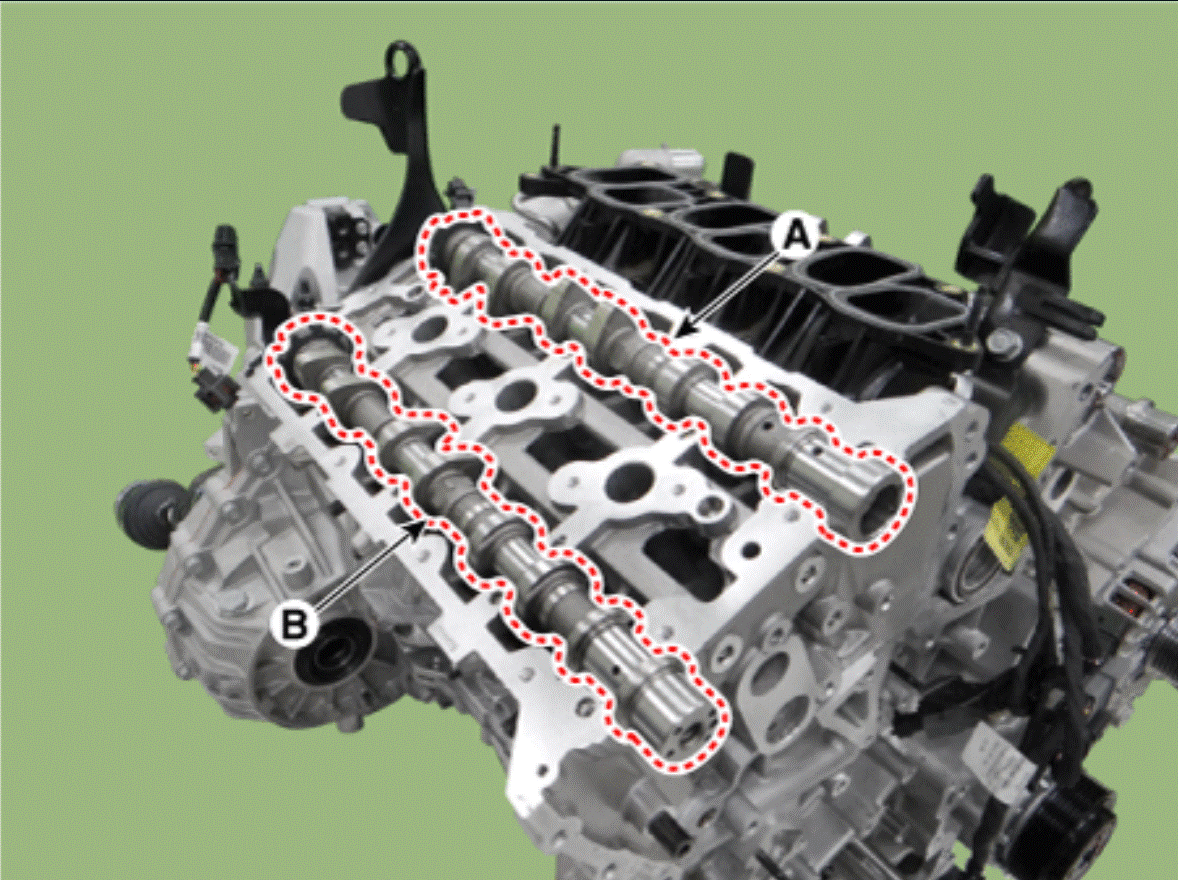

  1. Install the RH intake camshaft (A) and exhaust camshaft (B).
    G15692847Courtesy of KIA MOTORS AMERICA, INC.

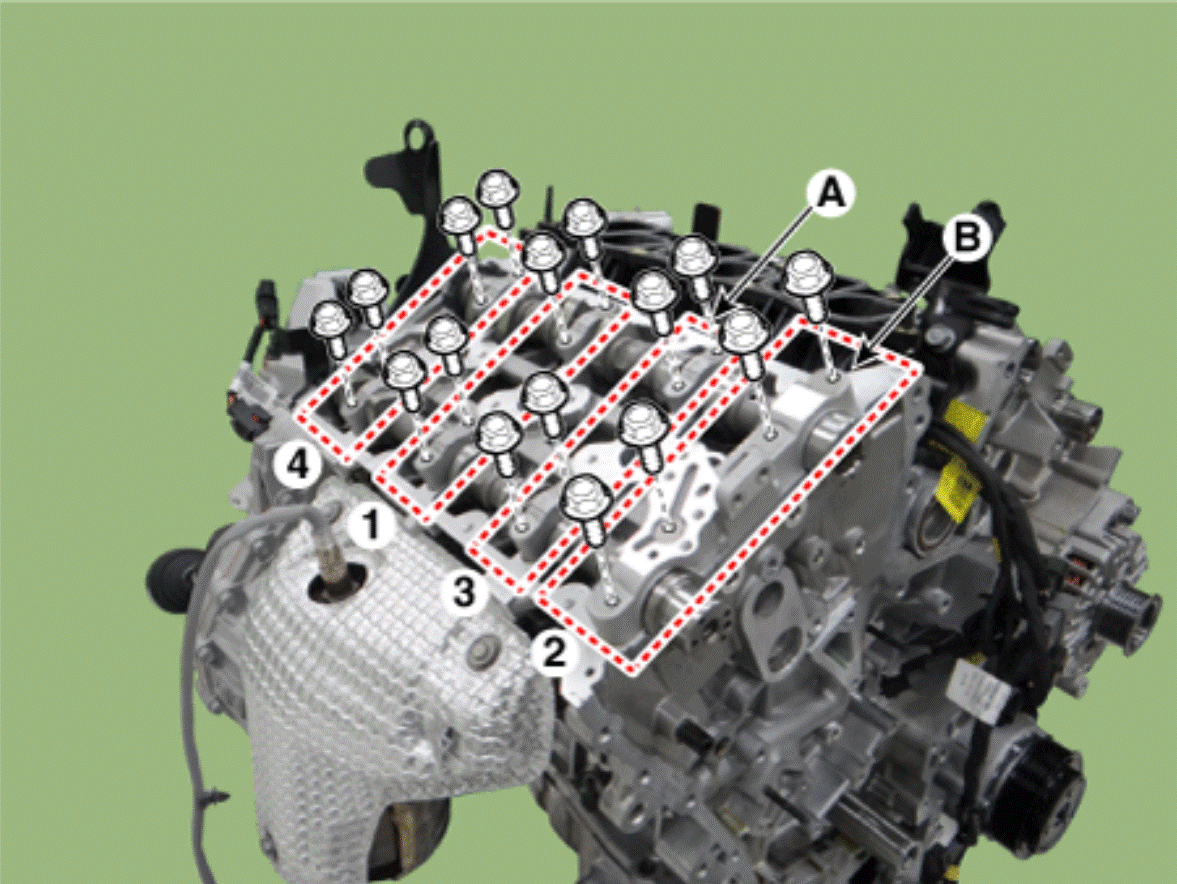

  2. Install the RH camshaft bearing cap (A) and thrust bearing cap (B) to the specified torque.

    Tightening torque

    Step 1: 5.9 N.m (0.6 kgf.m, 4.3 lb.ft, 52.1 lb.in)

    Step 2: 9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

    G15692848Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:

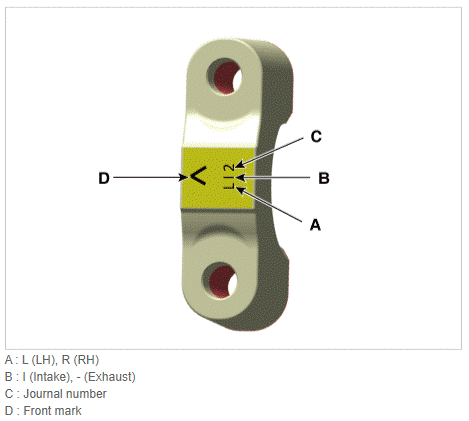

    • Be sure to install the thrust bearing cap bolts and the bearing cap bolts in the correct place.
    • Be cautious not to damage the right and left banks, and intake and exhaust sides when assembling.
      G15692849Courtesy of KIA MOTORS AMERICA, INC.
    • Rotate the crankshaft until the pistons are located 10 mm (0.3937 in.) below the top of cylinder block so that it doesn't come into contact with the valves.

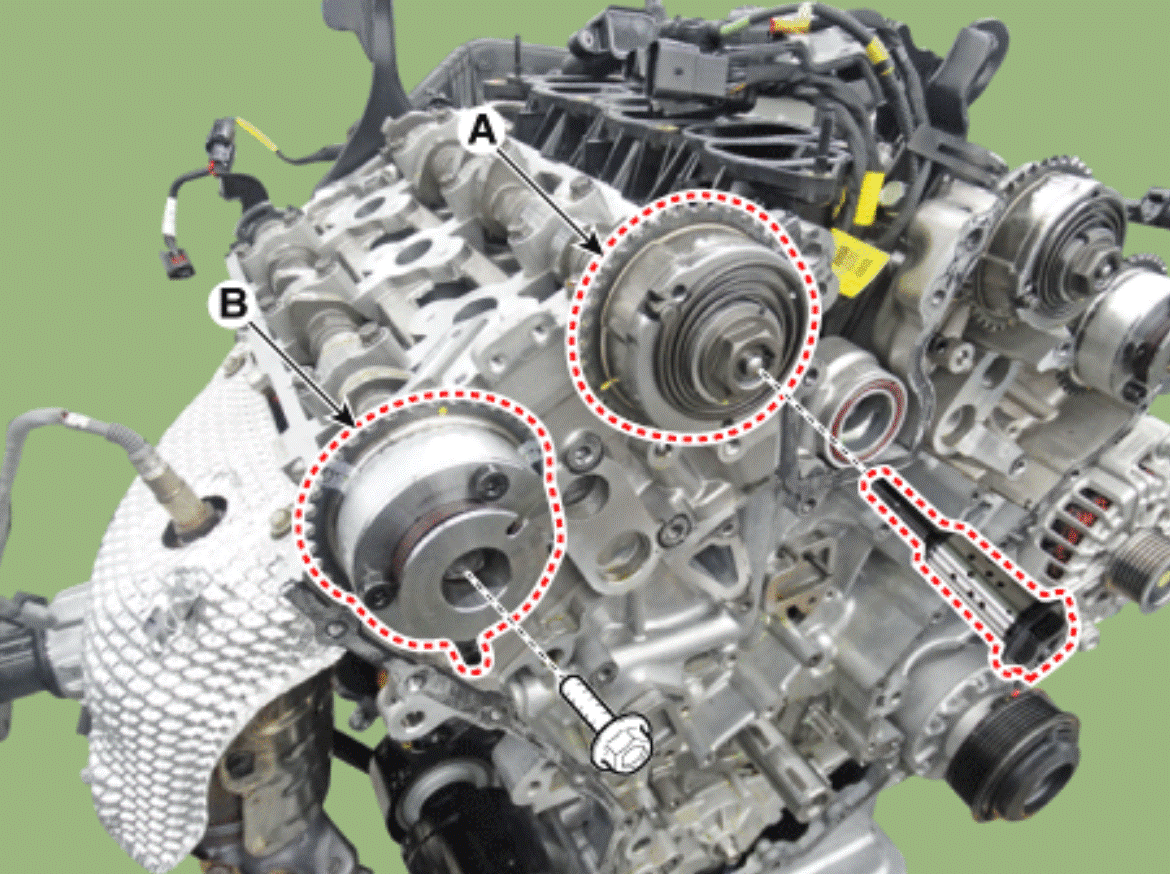

  3. Install the RH intake CVVT assembly (A) and exhaust CVVT assembly (B).

    Tightening torque

    Intake

    Step 1: 24.5 N.m (2.5 kgf.m, 18.1 lb.ft)

    Step 2: 55 - 61°

    Exhaust:

    64.7 - 76.5 N.m (6.6 - 7.8 kgf.m, 47.7 - 56.4 lb.ft)

    G15692850Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:
    • To prevent impurities from entering intake OCV & center bolt, wear rubber gloves.
    • When installing intake OCV & center bolt, temporarily install by hand, and then fully install by using a tool.
    • When installing intake OCV & center bolt, install to the specified tightening torque.
    • Do not use any dropped intake OCV & center bolt.
    • When installing intake CVVT, apply engine oil on cross section (A) of OCV.
      G15692851Courtesy of KIA MOTORS AMERICA, INC.

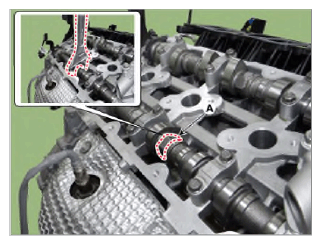

    • When installing CVVT assembly bolt, hold A section of camshaft with a wrench.
    • Be careful not to damage cylinder head and camshaft.
      G15692852Courtesy of KIA MOTORS AMERICA, INC.
    • Install camshaft-inlet to dowel pin of CVVT assembly.

      When doing this, be careful not to install on the oil hole of camshaft-inlet.

    • Hold the hexagonal head wrench portion of the camshaft with a vise, and install the bolt and CVVT assembly.
    • Do not rotate CVVT assembly when installing the camshaft to the dowel pin of CVVT assembly.

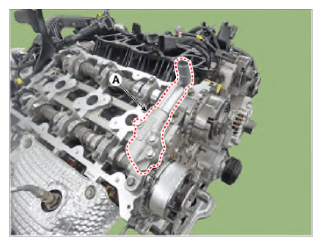

  4. Install the RH exhaust camshaft Oil Control Valve (OCV) (A).

    Tightening torque:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

    G15692853Courtesy of KIA MOTORS AMERICA, INC.
  5. Install in the reverse order of removal.
NOTE: Install the RH CVVT & camshaft to the specified torque.
