Intake Camshaft
 Courtesy of KIA MOTORS AMERICA, INC.
|

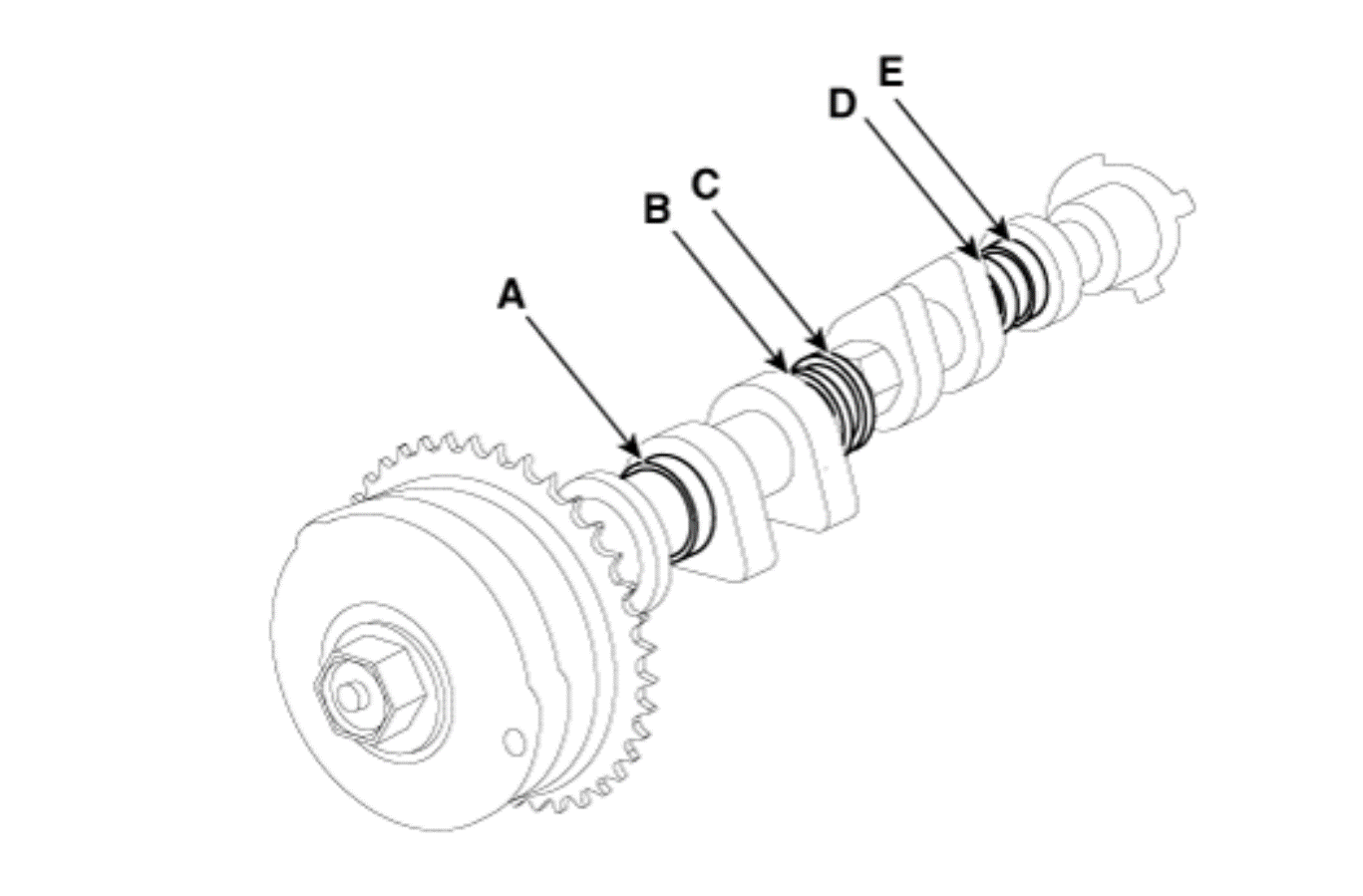

As for camshaft identification (A, B, C, D, E), refer to the table below.
| Displacement |
Outer diameter |
| LH |
RH |
| Intake camshaft |
A: - |
A: 30 mm (1.1811 in.) |
| B: - |
B: 30 mm (1.1811 in.) |
| C: - |
C: 27 mm (1.0630 in.) |
| D: 24 mm (0.9449 in.) |
D: 27 mm (1.0630 in.) |
| E: 24 mm (0.9449 in.) |
E: 30 mm (1.1811 in.) |
