Exhaust Camshaft
 Courtesy of KIA MOTORS AMERICA, INC.
|

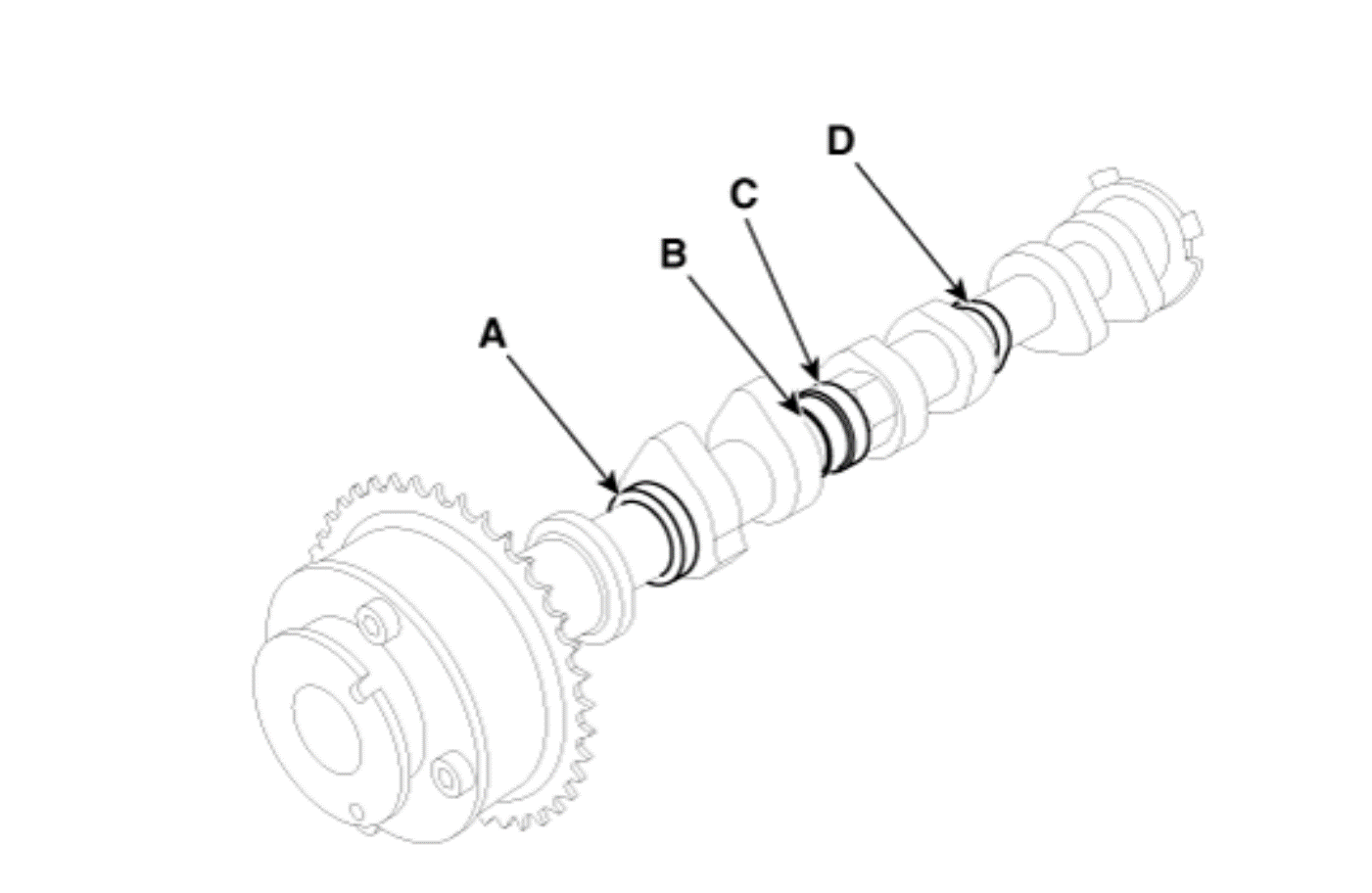

As for camshaft identification (A, B, C, D), refer to the table below.
| Displacement |
Outer diameter |
| LH |
RH |
| Exhaust camshaft |
A: 27 mm (1.0630 in.) |
A: 27 mm (1.0630 in.) |
| B: 27 mm (1.0630 in.) |
B: 27 mm (1.0630 in.) |
| C: 30 mm (1.1811 in.) |
C: 30 mm (1.1811 in.) |
| D: 27 mm (1.0630 in.) |
D: 30 mm (1.1811 in.) |
