[Lower Oil Pan]
- Install the lower oil pan (A).
- Using a gasket scraper, remove all the old packing material from the gasket surfaces.
- Before assembling the oil pan, apply liquid sealant TB 1217H on the oil pan. Assemble the part within 5 minutes of applying sealant.
Bead width:
2.5 mm (0.1 in.)
NOTE:- Clean the sealing face before assembling two parts.
- Remove harmful foreign matters on the sealing face before applying sealant.
- When applying sealant gasket, sealant must not protrude into the oil pan.
- To prevent leakage of oil, apply sealant gasket to the inner threads of the bolt holes.

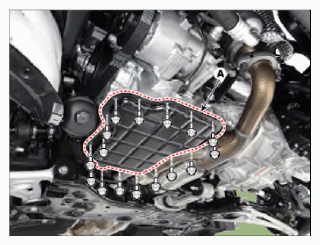

- Install the oil pan (A).
Uniformly tighten the bolts in several passes.
Tightening torque:
11.8 - 13.7 N.m (1.2 - 1.4 kgf.m, 8.7 - 10.1 lb.ft)
- After assembly, wait for at least 30 minutes before filling the engine with oil.
- Install the remaining parts in the reverse order of removal.
