Removal & Installation: Removal

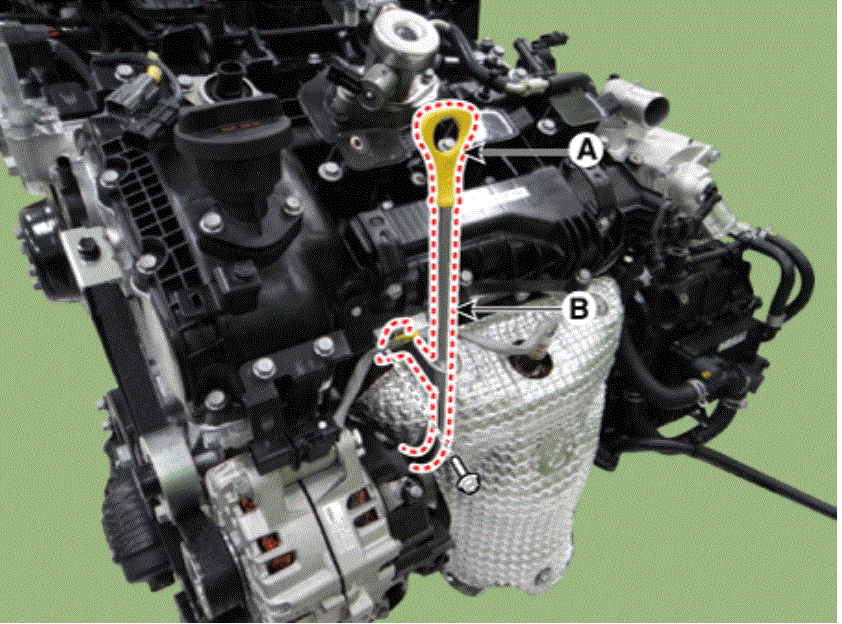

Remove the oil level gauge rod (B) and the oil level gauge (A) after removing the bolt.
Tightening torque:

18.6 - 22.6 N.m (1.9 - 2.3 kgf.m, 13.7 - 16.6 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- When installing, apply engine oil to the O-ring and be careful not to damage the O-ring.
- Always use a new O-ring.
