Removal & Installation: Removal

  1. Remove the engine room under cover.

    (Refer to Engine And Transaxle Assembly - "ENGINE ROOM UNDER COVER ")

  2. Drain the coolant.

    (Refer to Cooling System - "COOLANT ")

  3. Remove the drive belt.

    (Refer to Drive Belt System - "DRIVE BELT ")

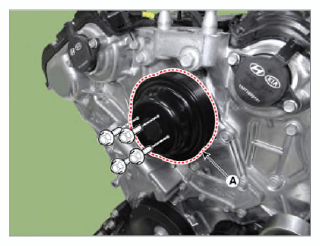

  4. Remove the water pump pulley (A) after removing the bolts.
    G15692689Courtesy of KIA MOTORS AMERICA, INC.

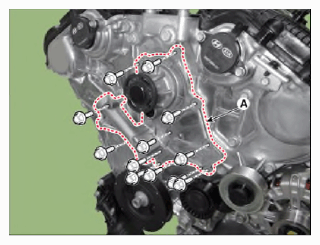

  5. Remove the water pump (A) and gaskets after removing the bolts.
G15692690Courtesy of KIA MOTORS AMERICA, INC.
